AW3237 - Panasonic

Description: 1 Form A 10 A, 1 Form A 1 Form B/2 Form A 8 A, Small polarized power relays,9 V DC,22.2 mA 405 Ω ,200 mW

Download AW3237 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AW3237 model

Email notifications will be applied after download.

Send part feedback

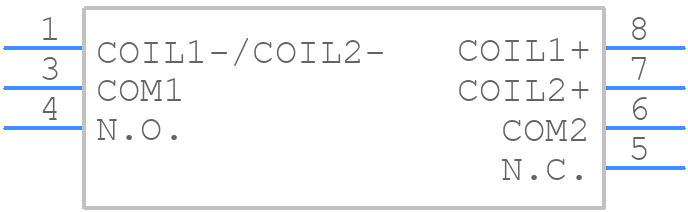

Symbol

AW3237 - Panasonic - PCB symbol

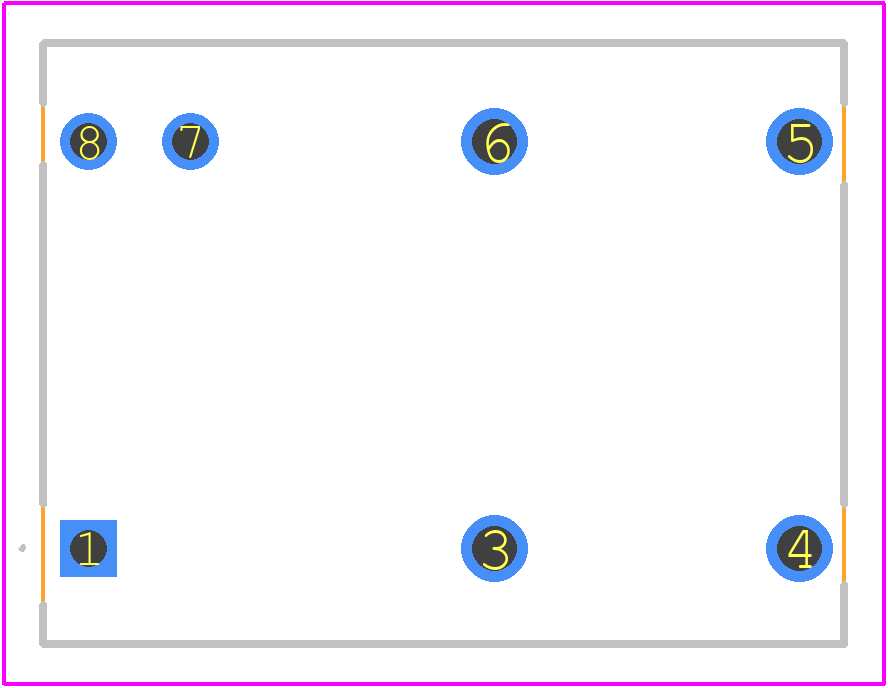

PCB Footprints

AW3237 - Panasonic PCB footprint - Other - Other - AW3237-2

3D Models

AW3237 - Panasonic - 3D model - Other - AW3237-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for AW3237
Part Number AW3237
Manufacturer Panasonic
Pin Count 7
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AW3237-2
Released Date Nov 23, 2025
Last Modified Date Apr 30, 2026 1:48 PM UTC
Pinout / Pin List Click Here (Member Only)

AW3237 Details

Manufacturer Part Number:
AW3237
Manufacturer:
Panasonic Electronic Components
