AW8410 - Panasonic

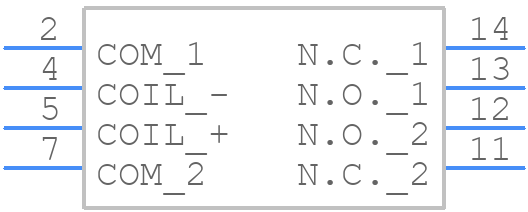

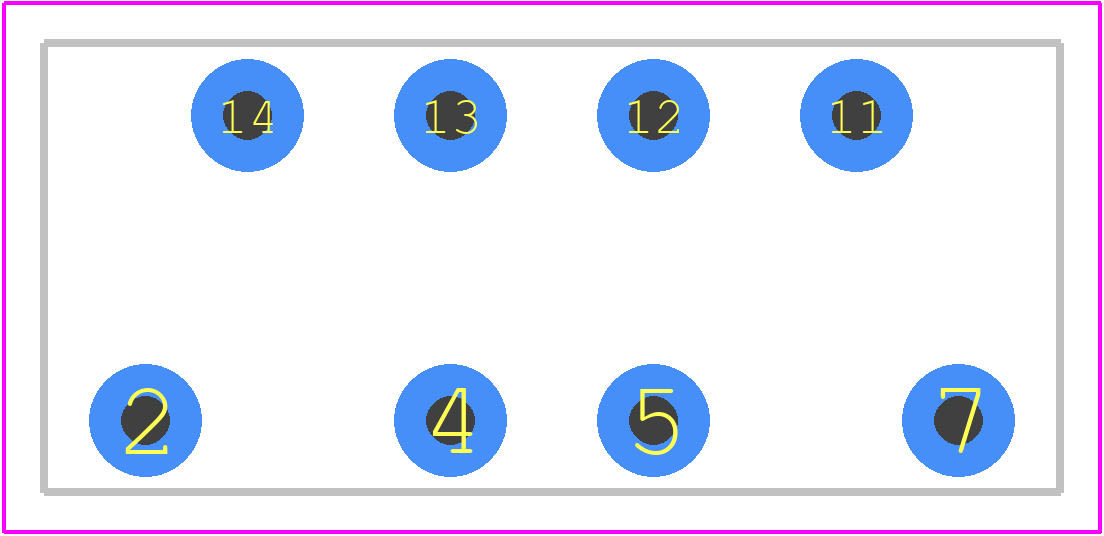

AW8410 Details

• Manufacturer Part Number:

  AW8410

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.49.00.50

• Manufacturer:

  Panasonic Electronic Components

• Body Breadth:

  11.2 mm

• Body Height:

  27.8 mm

• Body Length or Diameter:

  25.4 mm

• Coil Current(DC)-Max:

  0.06 A

• Coil Operate Voltage(DC):

  4.8 V

• Coil Power:

  360 mW

• Coil Release Voltage(DC):

  0.6 V

• Coil Resistance:

  100 Ω

• Coil Voltage(DC)-Max:

  8.1 V

• Coil Voltage-Nom:

  6 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  1250VA@250VAC

• Contact (AC) Max Rating R Load:

  5A@250VAC

• Contact Current(AC)-Max:

  5 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Power Rating R Load:

  150W@220VDC

• Contact (DC) Max Rating R Load:

  5A@220VDC

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  220 V

• Contact/Output Supply Type:

  AC/DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  SILVER NICKEL

• End Contact Plating:

  GOLD

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  8

• Operate Time:

  20 ms

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -40 °C

• Packing Method:

  BOX

• Physical Dimension:

  25.4mm x 11.2mm x 27.8mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  2 FORM C

• Relay Function:

  DPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Sealing:

  DUST PROOF

• Surface Mount:

  NO

• Terminal Length:

  0.004089408178816358 inch

• Termination Type:

  SOLDER
