AWSCR-8.00CPLA-C33-T4 footprint, schematic symbol and 3D model by ABRACON

Symbol

click to zoom

PCB Footprints

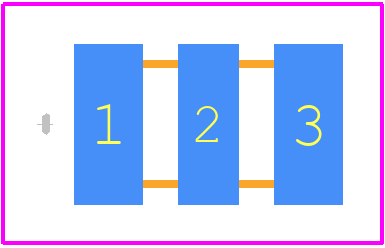

AWSCR-8.00CPLA-C33-T4 - ABRACON PCB footprint - Other - Other - AWSCR-8.00CPLA-C33-T4-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AWSCR-8.00CPLA-C33-T4
Part Number AWSCR-8.00CPLA-C33-T4
Manufacturer ABRACON
Pin Count 3
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - AWSCR-8.00CPLA-C33-T4-2
Released Date Oct 14, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AWSCR-8.00CPLA-C33-T4 Details

Manufacturer Part Number:
AWSCR-8.00CPLA-C33-T4
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
Factory Lead Time:
12 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Crystal/Resonator Type:
CERAMIC RESONATOR
Frequency Stability:
0.3%
Frequency Tolerance:
5000 ppm
Mounting Feature:
SURFACE MOUNT
Operating Frequency-Nom:
8 MHz
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Physical Dimension:
3.2mm x 1.3mm x 1.0mm
Surface Mount:
YES

AWSCR-8.00CPLA-C33-T4 Frequently Asked Questions (FAQs)

The operating temperature range of the AWSCR-8.00CPLA-C33-T4 is -40°C to +85°C.
Yes, the AWSCR-8.00CPLA-C33-T4 is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The recommended storage temperature for the AWSCR-8.00CPLA-C33-T4 is -40°C to +125°C.
Yes, the AWSCR-8.00CPLA-C33-T4 is designed to withstand high-vibration environments, with a vibration sensitivity of 10g peak acceleration.
The typical start-up time for the AWSCR-8.00CPLA-C33-T4 is 2-5 ms.

Trust Checks

Expert Contribution

System Verified

Community Approved

AWSCR-8.00CPLA-C33-T4 Overview

Use the download button to access the AWSCR-8.00CPLA-C33-T4 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AWSCR, or try a keyword search, such as Ceramic Resonators
