Part Image

AX-SFAZ-API-1-01-TB05 - onsemi

Description: RF Transceiver SoC, Sigfox™ Verified RCZ4, Ultra-low Power, with API library

Download AX-SFAZ-API-1-01-TB05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

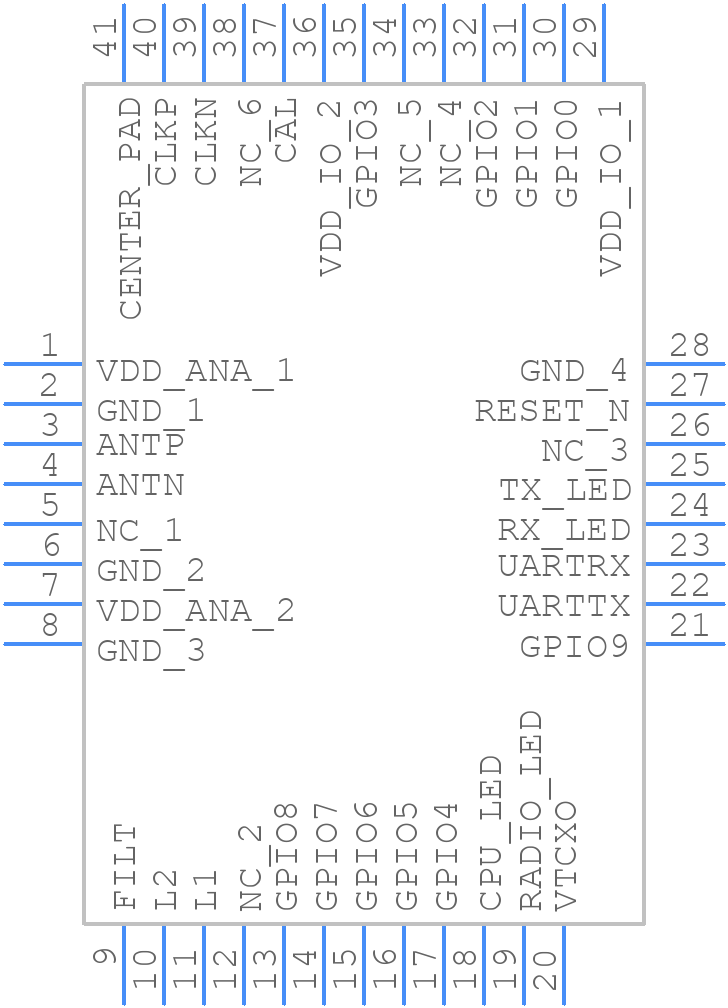

AX-SFAZ-API-1-01-TB05 - onsemi - PCB symbol
click to zoom
PCB Footprints
AX-SFAZ-API-1-01-TB05 - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40 7x5, 0.5P CASE 485EG ISSUE A
click to zoom
3D Models
AX-SFAZ-API-1-01-TB05 - onsemi - 3D model - Quad Flat No-Lead - QFN40 7x5, 0.5P CASE 485EG ISSUE A
click to zoom

AX-SFAZ-API-1-01-TB05 Details

  • Manufacturer Part Number:

    AX-SFAZ-API-1-01-TB05

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-40

  • Manufacturer Package Code:

    485EG

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    R-PQCC-N40

  • Length:

    7 mm

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2X.28,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.1 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

AX-SFAZ-API-1-01-TB05 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal performance can be found in the application note AN5191, which provides guidelines for PCB design, layout, and thermal management.
  • The AX-SFAZ-API-1-01-TB05 has a thermal pad on the bottom of the package. It's recommended to use a thermal interface material (TIM) and a heat sink to dissipate heat. The application note AN5191 provides more information on thermal management.
  • The maximum operating temperature range for the AX-SFAZ-API-1-01-TB05 is -40°C to 125°C, as specified in the datasheet.
  • Yes, the AX-SFAZ-API-1-01-TB05 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard and is designed to meet the requirements of ISO 26262.
  • The recommended soldering process for the AX-SFAZ-API-1-01-TB05 is reflow soldering, with a peak temperature of 260°C. The application note AN5191 provides more information on soldering and assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX-SFAZ-API-1-01-TB05 Overview

Use the download button to access the AX-SFAZ-API-1-01-TB05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX-SF, or try a keyword search, such as Other Telecom ICs
