The recommended PCB layout involves keeping the device away from high-current paths, using a solid ground plane, and placing thermal vias under the device. For thermal management, a heat sink or thermal pad is recommended, and the device should be mounted on a multi-layer PCB with a thermal conductivity of at least 1 W/m-K.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 125°C), use a heat sink or thermal pad, and ensure good airflow around the device. Additionally, consider using a thermal interface material with a high thermal conductivity and follow the recommended PCB layout guidelines.
The input capacitor should have a minimum capacitance of 10 μF and a voltage rating of at least 2x the input voltage. The output capacitor should have a minimum capacitance of 22 μF and a voltage rating of at least 2x the output voltage. Both capacitors should have a low ESR (Equivalent Series Resistance) and be placed close to the device.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and thermal management to ensure they meet the recommended guidelines. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for specific troubleshooting guidelines.
The input voltage source should have a minimum voltage rating of at least 2x the input voltage and a current capability of at least 1.5x the maximum input current. The input voltage source should also have a low output impedance and be able to provide a stable voltage under all operating conditions.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
AX-SFEU-API-1-01-TX30 Overview

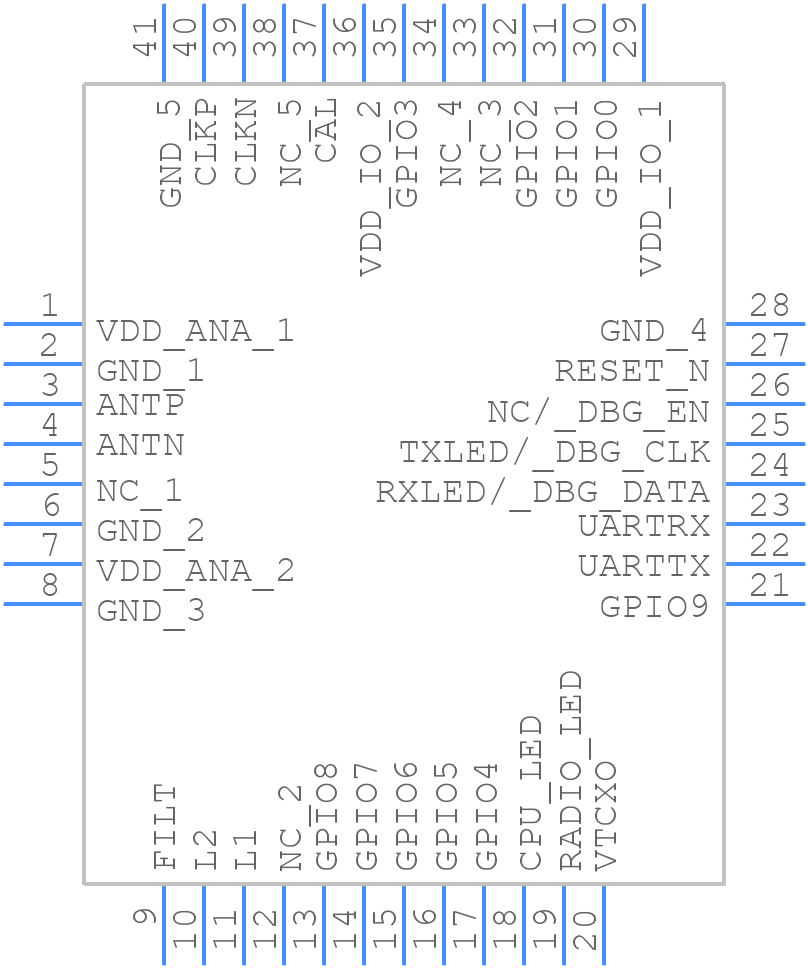

Use the download button to access the AX-SFEU-API-1-01-TX30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX-SF,
or try a keyword search, such as Other Telecom ICs
