AX8052F143-2-TB05 - onsemi

Description: AX8052F143-2-TB05, RF Transceiver 27 → 1050MHz, AFSK, ASK, FM, FSK, GFSK, GMSK, MSK, PSK, QFSK,

Download AX8052F143-2-TB05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

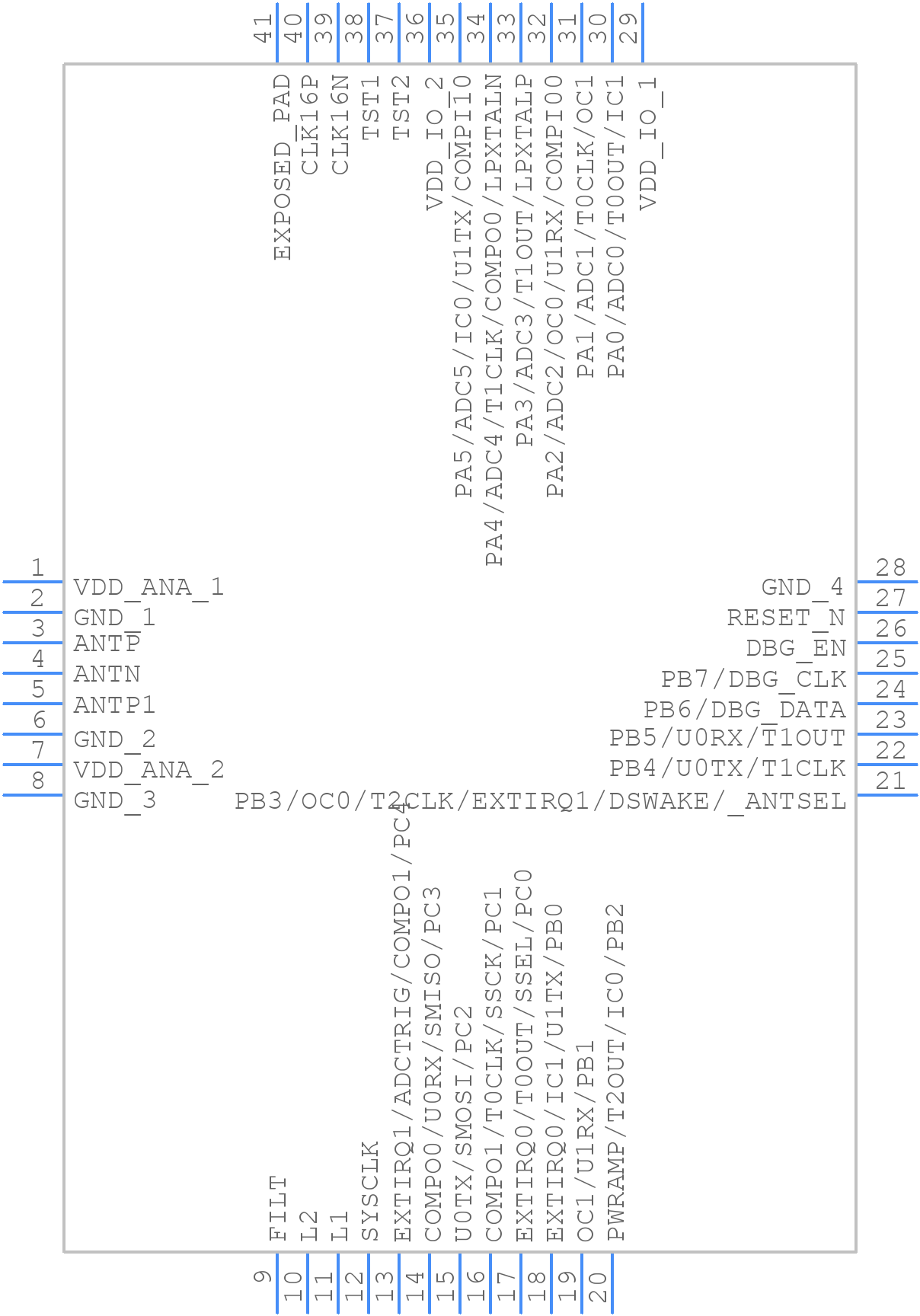

AX8052F143-2-TB05 - onsemi - PCB symbol
click to zoom
PCB Footprints
AX8052F143-2-TB05 - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40 6x6, 5x7
click to zoom
3D Models
AX8052F143-2-TB05 - onsemi - 3D model - Quad Flat No-Lead - QFN40 6x6, 5x7
click to zoom

AX8052F143-2-TB05 Details

  • Manufacturer Part Number:

    AX8052F143-2-TB05

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    485EG

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    R-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.35X.55

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.2 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

AX8052F143-2-TB05 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation. Use thermal interface material (TIM) and a heat sink if possible.
  • Use a low-ESR capacitor (e.g., X5R or X7R) with a value of 4.7uF to 10uF for the input capacitor. Ensure the power supply can provide a minimum of 1.5A current. Add a 10uF capacitor on the output for stability.
  • Use a 12MHz crystal oscillator with a 10kΩ resistor in series and a 10pF capacitor in parallel for the clock input. Ensure the clock signal is clean and has minimal jitter.
  • Use a 10kΩ pull-up resistor on the reset pin and a 100nF capacitor to ground. Add a 1kΩ resistor in series with the reset signal to prevent ringing. Ensure the reset signal is clean and has a rise time of <10ns.
  • Use a common-mode choke and a 10nF capacitor for EMI filtering. Add a TVS diode (e.g., 1.5KE6.8CA) for ESD protection on the I/O lines. Ensure the PCB layout minimizes loop areas and uses a solid ground plane.
