AXA573062P - HTK

Description: 20PC AXA573062P SD card memory card holder marked with mounting SMD

Download AXA573062P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

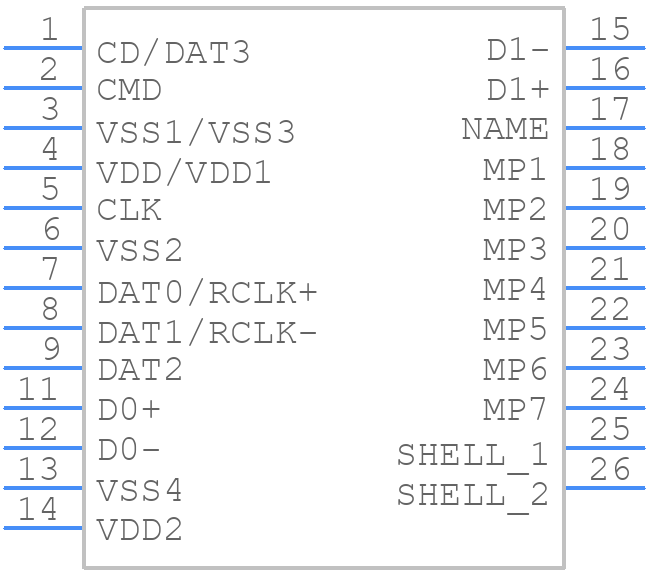

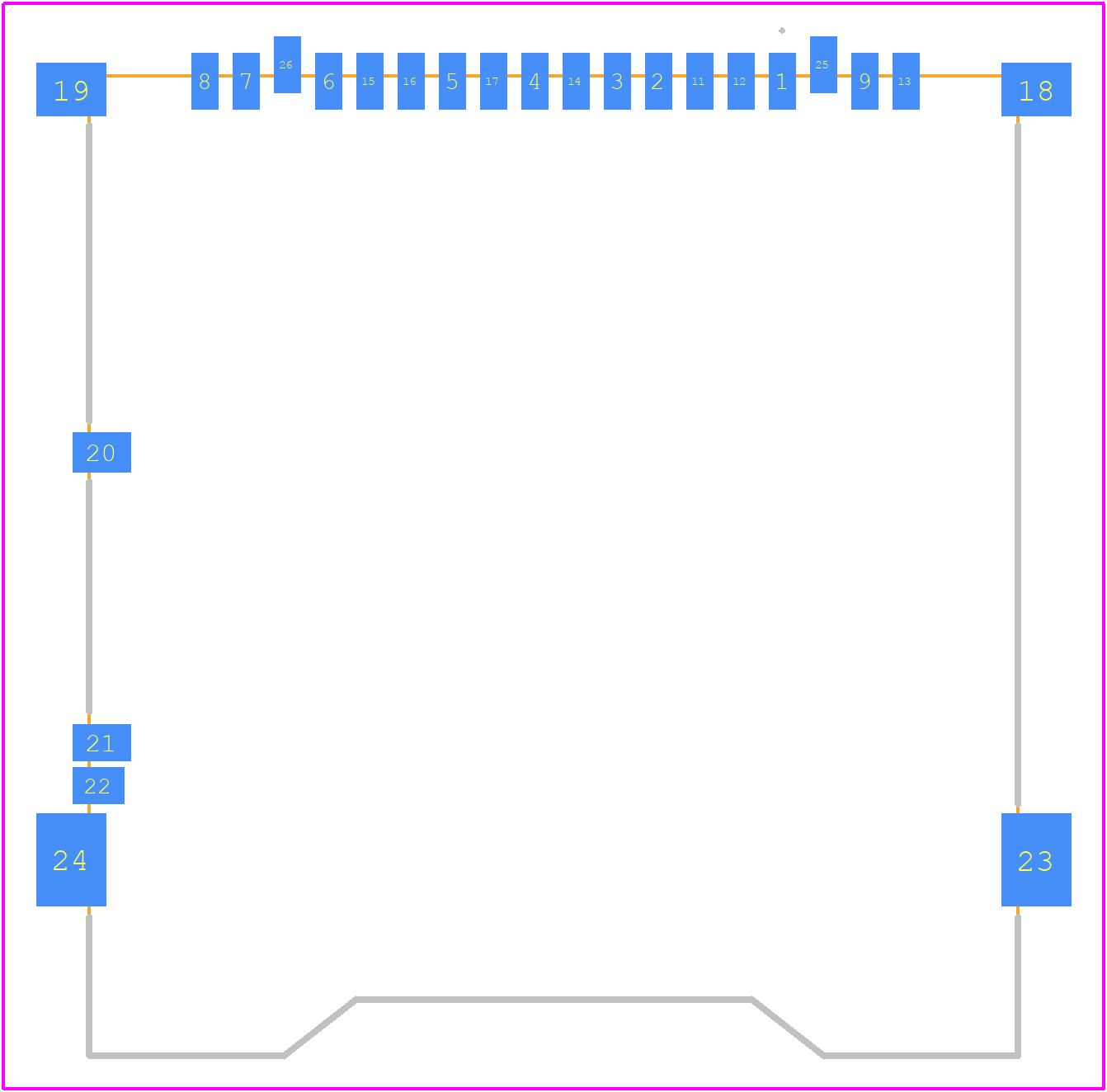

AXA573062P - HTK PCB footprint - Other - Other - AXA573062P-2
click to zoom
3D Models
AXA573062P - HTK  - 3D model - Other - AXA573062P-2
click to zoom

AXA573062P Details

  • Manufacturer Part Number:

    AXA573062P

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Honda Tsushin Kogyo Co Ltd

  • Connector Type:

    PCB CONNECTOR
