- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AXE440124
- Part Number AXE440124
- Manufacturer Panasonic
- Pin Count 44
- Part Category Connector
- Package Category Other
- Footprint Name Other - AXE440124-3
- Released Date Jul 20, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AXE440124 Details
-
Manufacturer Part Number:
AXE440124
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
0
-
Additional Feature:
LOW PROFILE
-
Connector Type:
FFC/FPC CONNECTOR
-
Contact Finish Mating:
GOLD OVER NICKEL
-
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
AXE440124 Frequently Asked Questions (FAQs)
-
Panasonic recommends following the recommended land pattern and PCB layout guidelines provided in the datasheet. Additionally, it's essential to ensure a solid ground plane, minimize signal trace lengths, and use a 4-layer PCB with a dedicated power plane to reduce noise and EMI.
-
To ensure reliable operation, it's crucial to provide adequate thermal management. Panasonic recommends using a heat sink with a thermal conductivity of at least 1 W/m-K, and applying a thermal interface material with a thermal conductivity of at least 1 W/m-K. Ensure good airflow around the component and avoid blocking airflow with nearby components.
-
Panasonic recommends following the soldering conditions outlined in the datasheet. Specifically, use a soldering temperature of 250°C ± 5°C, with a soldering time of 3 seconds ± 1 second. Ensure the component is not exposed to temperatures above 260°C during the soldering process.
-
To troubleshoot issues, first, verify that the component is properly soldered and the PCB layout meets the recommended guidelines. Check for any signs of physical damage, overheating, or electrical overstress. Use a multimeter to measure voltage and current at the input and output pins. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
-
Yes, the AXE440124 is a sensitive component and requires proper ESD protection. Handle the component in an ESD-controlled environment, wear an ESD wrist strap or use an ESD mat, and ensure all tools and equipment are ESD-safe. Avoid touching the component's pins or leads, and use ESD-safe packaging and storage materials.
Trust Checks
Expert Contribution
System Verified
Community Approved
AXE440124 Overview

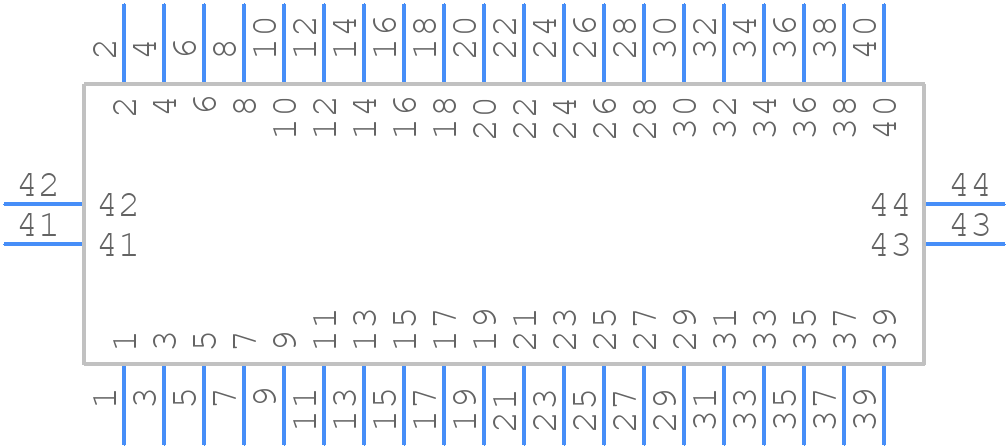

Use the download button to access the AXE440124 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXE44,
or try a keyword search, such as Headers and Edge Type Connectors
