Technical Content
Part Image

AXE524127 - Panasonic

Description: 24 Position Connector Socket, Center Strip Contacts Surface Mount Gold

Download AXE524127 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

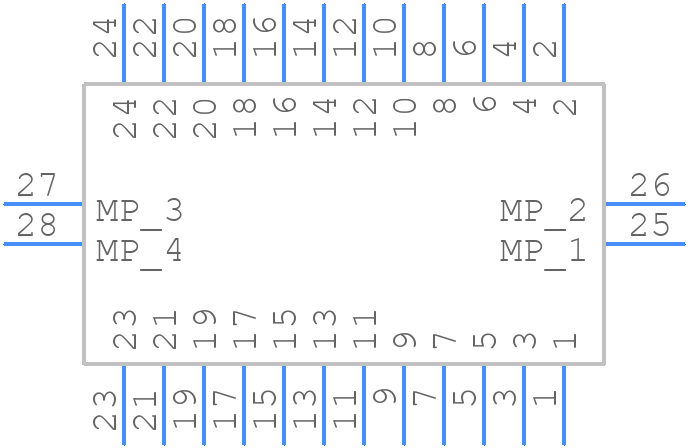

Symbol
AXE524127 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXE524127 - Panasonic PCB footprint - Other - Other - AXE524127-5
click to zoom
3D Models
AXE524127 - Panasonic - 3D model - Other - AXE524127-5
click to zoom

AXE524127 Details

  • Manufacturer Part Number:

    AXE524127

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

AXE524127 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a 10uF decoupling capacitor near the VCC pin.
  • Monitor the device's junction temperature (Tj) and ensure it stays within the recommended range (-40°C to 125°C). Also, maintain the recommended voltage supply range (1.65V to 3.6V) and current consumption (less than 1mA).
  • Store the device in a dry, cool place (less than 30°C and 60% RH) away from direct sunlight and moisture. Avoid exposing it to mechanical stress, vibration, or electrical overstress.
  • Yes, but ensure you follow Panasonic's guidelines for high-reliability applications. Implement proper fault detection, error correction, and redundancy mechanisms to ensure the system's reliability and safety.
  • Consult the datasheet and application notes for troubleshooting guidelines. Check the device's power supply, clock signal, and input/output connections. Use oscilloscopes or logic analyzers to debug the issue. If necessary, contact Panasonic's technical support for assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AXE524127 Overview

Use the download button to access the AXE524127 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXE52, or try a keyword search, such as Headers and Edge Type Connectors
