AXE614124 - Panasonic

Description: Panasonic A4S, 0.4mm Pitch, 14 Way, 2 Row PCB Header, Surface Mount

Download AXE614124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

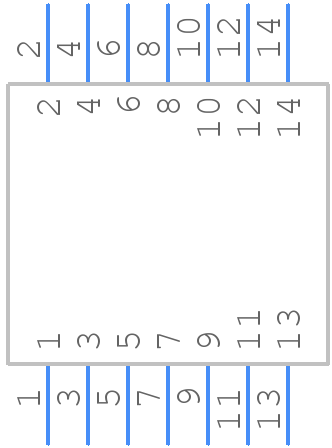

AXE614124 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXE614124 - Panasonic PCB footprint - Other - Other - AXE614124-2
click to zoom
3D Models
AXE614124 - Panasonic - 3D model - Other - AXE614124-2
click to zoom

AXE614124 Details

  • Manufacturer Part Number:

    AXE614124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.98

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0
