Part Image

AXE616124 - Panasonic

Description: Panasonic A4S, 0.4mm Pitch, 16 Way, 2 Row PCB Header, Surface Mount

Download AXE616124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

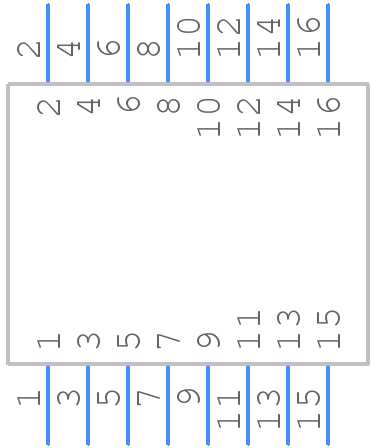

AXE616124 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXE616124 - Panasonic PCB footprint - Other - Other - AXE616124-2
click to zoom
3D Models
AXE616124 - Panasonic - 3D model - Other - AXE616124-2
click to zoom

AXE616124 Details

  • Manufacturer Part Number:

    AXE616124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.98

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

AXE616124 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a 10uF capacitor between VCC and GND for decoupling.
  • Monitor the voltage supply to ensure it remains within the recommended range of 2.7V to 5.5V. Also, ensure the operating temperature remains within the range of -40°C to 85°C.
  • The maximum current rating for the AXE616124 is 100mA. Exceeding this limit may cause damage to the device.
  • While the AXE616124 can operate up to 85°C, it's not recommended for continuous operation above 70°C. If high-temperature operation is required, consider using a heat sink or a thermally-enhanced package.
  • Check the power supply voltage, ensure proper PCB layout, and verify signal integrity. Use an oscilloscope to monitor signal waveforms and identify any anomalies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AXE616124 Overview

Use the download button to access the AXE616124 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXE61, or try a keyword search, such as Headers and Edge Type Connectors
