AXE624124 footprint, schematic symbol and 3D model by Panasonic

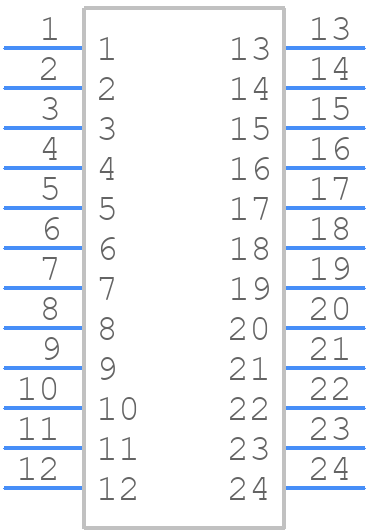

Symbol

click to zoom

PCB Footprints

AXE624124 - Panasonic PCB footprint - Other - Other - AXE624124

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AXE624124
Part Number AXE624124
Manufacturer Panasonic
Pin Count 24
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AXE624124
Released Date Apr 20, 2020
Last Modified Date Dec 9, 2025 9:57 AM UTC
Pinout / Pin List Click Here (Member Only)

AXE624124 Details

Manufacturer Part Number:
AXE624124
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Factory Lead Time:
10 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
6.98
Additional Feature:
LOW PROFILE
Connector Type:
FFC/FPC CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mating Contact Pitch:
0.016 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.4 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
24
UL Flammability Code:
94V-0
