AXE630124 - Panasonic

Description: 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold , 150VAC , 0.3A , 90mΩ , －55℃ to +85℃

Download AXE630124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

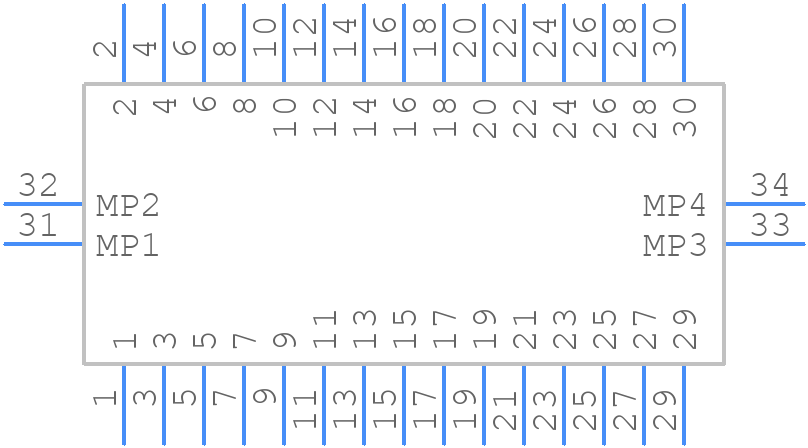

AXE630124 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXE630124 - Panasonic PCB footprint - Other - Other - AXE630124-3
click to zoom
3D Models
AXE630124 - Panasonic - 3D model - Other - AXE630124-3
click to zoom

AXE630124 Details

  • Manufacturer Part Number:

    AXE630124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.98

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0
