Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The AXE630124D has a high power density, so thermal management is crucial. Ensure good airflow, use thermal vias, and consider heat sinks or thermal interface materials to keep the junction temperature within the recommended range.
While the datasheet specifies the storage temperature range, the maximum operating temperature range is typically -40°C to 125°C. However, it's essential to check the specific operating temperature range for your application and ensure the component is within its recommended operating conditions.
The AXE630124D is designed to withstand moderate vibrations, but it's essential to evaluate the specific vibration requirements of your application. Consider using additional mechanical support or vibration-dampening materials to ensure the component's reliability.
Follow proper handling, storage, and soldering procedures to prevent damage. Ensure the component is operated within its recommended specifications, and consider implementing failure detection and protection mechanisms in your design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXE630124D Overview

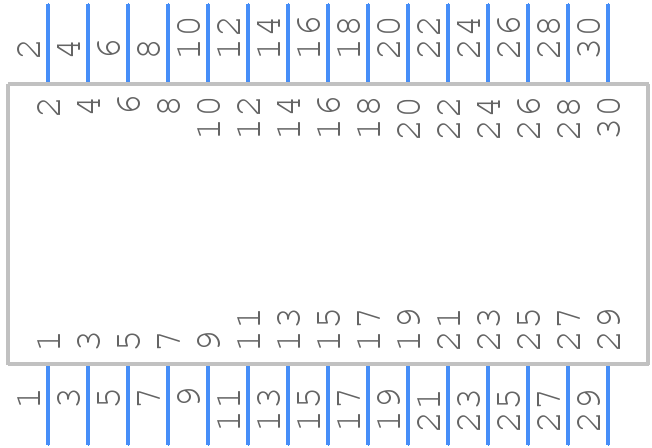

Use the download button to access the AXE630124D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXE63,
or try a keyword search, such as Headers and Edge Type Connectors
