Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The AXE630224 has a high power density, so thermal management is crucial. Ensure good airflow, use a heat sink if necessary, and follow Panasonic's thermal design guidelines to keep the junction temperature within the recommended range.
The AXE630224 has an operating temperature range of -40°C to +125°C. However, the maximum junction temperature (Tj) should not exceed 150°C to ensure reliability and prevent thermal runaway.
The AXE630224 is designed to withstand moderate vibrations. However, if your application involves extreme vibrations, you should consider additional mechanical support or vibration damping measures to ensure the component's reliability.
Follow Panasonic's recommended storage and handling procedures, ensure proper soldering and assembly, and operate the component within its specified ratings. Regularly monitor the component's performance and replace it if necessary to prevent failures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXE630224 Overview

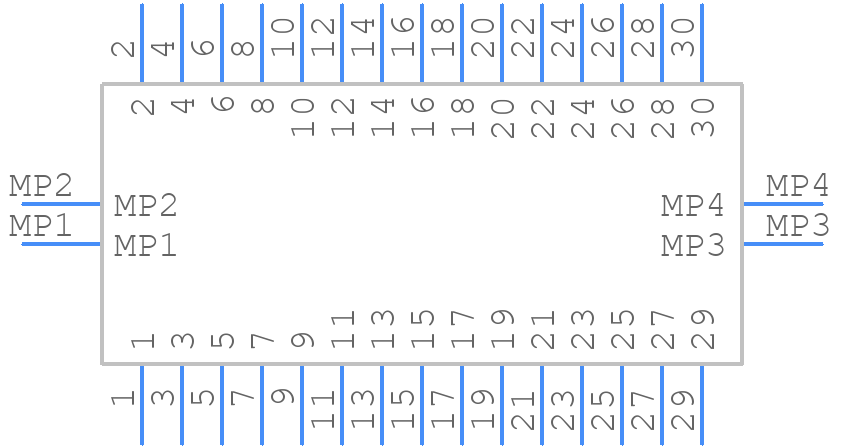

Use the download button to access the AXE630224 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXE63,
or try a keyword search, such as Headers and Edge Type Connectors
