AXE634124 footprint, schematic symbol and 3D model by Panasonic

Symbol

click to zoom

PCB Footprints

AXE634124 - Panasonic PCB footprint - Other - Other - AXE634124

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AXE634124
Part Number AXE634124
Manufacturer Panasonic
Pin Count 34
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - AXE634124
Released Date Nov 29, 2018
Last Modified Date Dec 9, 2025 9:57 AM UTC
Pinout / Pin List Click Here (Member Only)

AXE634124 Details

Manufacturer Part Number:
AXE634124
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
Factory Lead Time:
10 Weeks
Manufacturer:
Panasonic Electronic Components
YTEOL:
7.48
Additional Feature:
LOW PROFILE
Connector Type:
FFC/FPC CONNECTOR
Contact Finish Mating:
GOLD OVER NICKEL
Contact Finish Termination:
GOLD OVER NICKEL
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Contact Pitch:
0.016 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.4 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
34
UL Flammability Code:
94V-0

AXE634124 Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a 10nF decoupling capacitor between VCC and GND.
Monitor the device's junction temperature (TJ) and ensure it stays within the recommended range of -40°C to 125°C. Also, maintain the recommended voltage supply range of 2.7V to 5.5V.
The maximum allowable current for the I/O pins is 4mA. Exceeding this limit may cause damage to the device.
While the AXE634124 can operate up to 125°C, it's essential to consider the device's reliability and lifespan. Prolonged exposure to high temperatures can reduce the device's lifespan. Consider using a heat sink or thermal management system to maintain a safe operating temperature.
Use a logic analyzer or oscilloscope to monitor the communication signals. Check the signal integrity, clock frequency, and data transmission rates. Ensure the communication protocol is correctly implemented, and the device is properly configured.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AXE634124 Overview

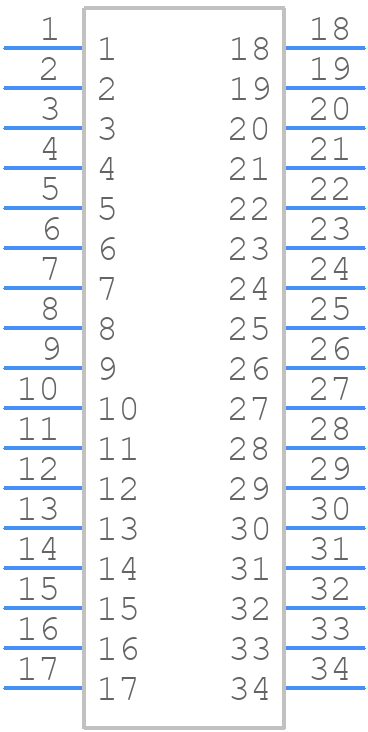

Use the download button to access the AXE634124 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AXE63, or try a keyword search, such as Headers and Edge Type Connectors
