Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The AXE640124D has a high power density, so thermal management is crucial. Ensure good airflow, use thermal vias, and consider heat sinks or thermal interface materials to keep the junction temperature below 125°C.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to note that the device can be derated for higher temperatures. Consult Panasonic's application notes for specific guidance on temperature derating.
The AXE640124D is designed to withstand moderate vibrations, but extreme vibrations may affect its performance and reliability. Consider using vibration-dampening materials, potting, or other mechanical designs to mitigate vibration effects.
Follow proper PCB design practices, such as using ground planes, shielding, and filtering, to minimize electromagnetic interference (EMI). Additionally, ensure that the AXE640124D is properly decoupled and that the system meets relevant EMC standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXE640124D Overview

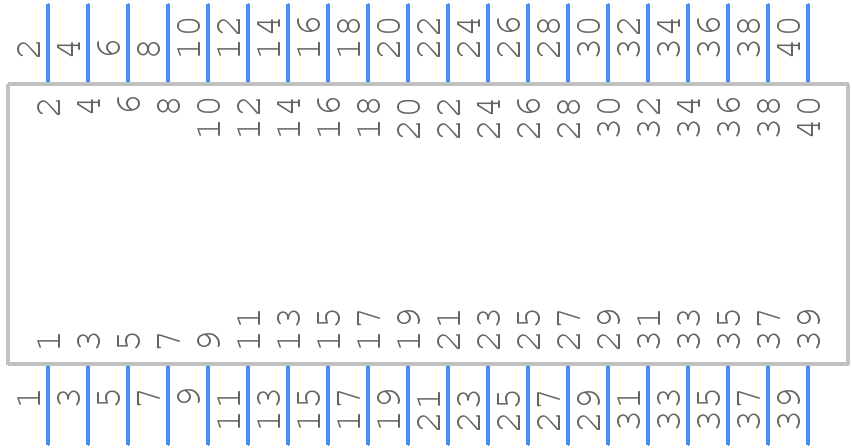

Use the download button to access the AXE640124D schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AXE64,
or try a keyword search, such as Headers and Edge Type Connectors
