Panasonic recommends a PCB layout with a solid ground plane and a land pattern that follows the JEDEC standard for QFN packages. A minimum of 2mm clearance around the package is recommended for thermal and electrical performance.
Follow the recommended reflow profile and soldering conditions outlined in the datasheet. Ensure the PCB is clean and dry, and use a solder paste with a melting point between 217°C to 220°C. Avoid excessive soldering temperatures and times to prevent damage to the component.
The AXE640224 has a thermal resistance of 25°C/W. Ensure good thermal conductivity by using a thermal pad or heat sink, and maintain a maximum junction temperature of 125°C. Avoid blocking airflow around the component and ensure good thermal interface material (TIM) between the component and heat sink.
Handle the component in an ESD-controlled environment, and use ESD-protective packaging and handling materials. Ensure all personnel handling the component wear ESD-protective wrist straps or use ESD-protective mats. Avoid touching the component's pins or leads to prevent ESD damage.
Store the component in its original packaging, away from direct sunlight and moisture. Avoid bending or flexing the component, and handle it by the edges to prevent damage to the pins or leads. Ensure the storage environment is clean, dry, and free from contaminants.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXE640224 Overview

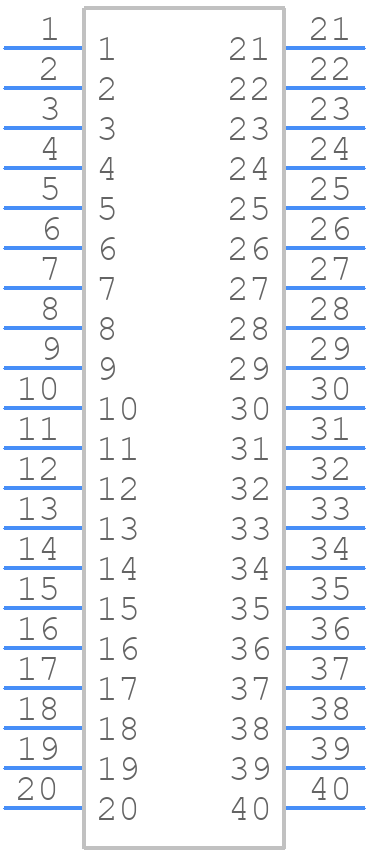

Use the download button to access the AXE640224 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AXE64,
or try a keyword search, such as Headers and Edge Type Connectors
