AXF5A3412 - Panasonic

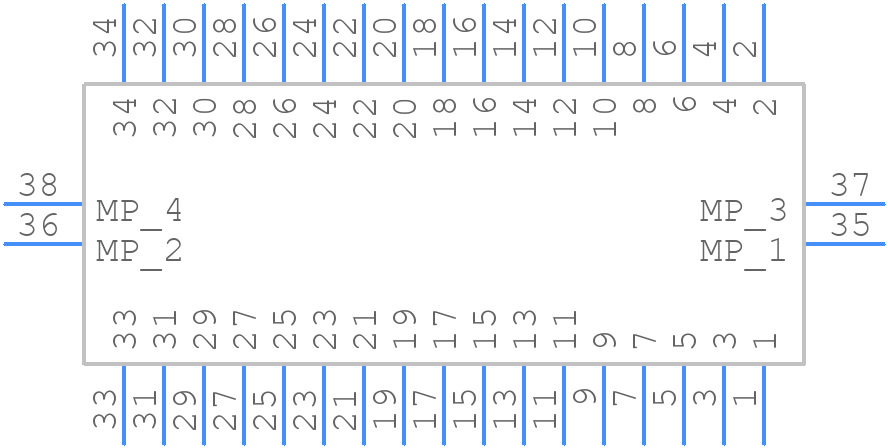

AXF5A3412 Details

• Manufacturer Part Number:

  AXF5A3412

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  8.68

• Board Mounting Option:

  SOLDER HOLD DOWN

• Body Breadth:

  0.087 inch

• Body Depth:

  0.03 inch

• Body Length:

  0.327 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  150VAC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  0.981 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• Mating Contact Pitch:

  0.014 inch

• Mating Contact Row Spacing:

  0.028 inch

• Mating Information:

  AXF6A3412

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  1.75 mm

• Rated Current (Power):

  1.5 A

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.35 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  34

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.165 N
