Description:High current connectors P4SP ( 0.4 mm pitch ), Max. 40 mΩ, Capable of MAX. 5 A for power, Rated current 1 A/pin ( for power ), 0.5 A/pin ( for signal ) , Total: Max. 12 A, 24 Position
Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The selection of external components depends on the specific application and operating conditions. Panasonic provides guidance on component selection in their application notes and design guides. Additionally, simulation tools and SPICE models can be used to optimize component values.
While the datasheet specifies the recommended operating temperature range, the maximum operating temperature range may be higher. According to Panasonic, the AXF5G2412 can operate up to 125°C, but this may affect its reliability and lifespan.
To ensure EMC and EMI compliance, follow Panasonic's guidelines for PCB layout, shielding, and filtering. Additionally, perform EMC and EMI testing during the design validation process to identify and mitigate any issues.
Panasonic provides guidelines for soldering the AXF5G2412 in their application notes and design guides. The recommended soldering process typically involves a reflow soldering process with a peak temperature of 260°C to 270°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXF5G2412 Overview

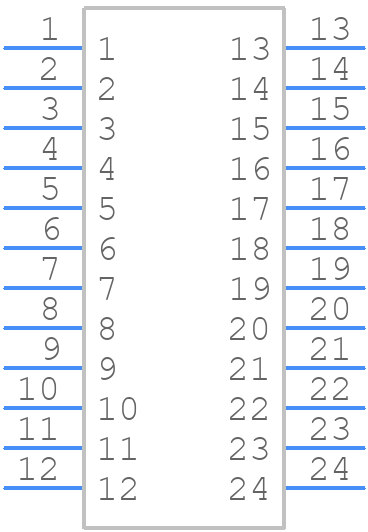

Use the download button to access the AXF5G2412 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AXF5G,
or try a keyword search, such as Headers and Edge Type Connectors
