AXK6F34347YG - Panasonic

Description: 34 Position Connector Header, Center Strip Contacts Surface Mount Gold, 90 mΩ, 150 V, －55 to ＋85 ℃

Download AXK6F34347YG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

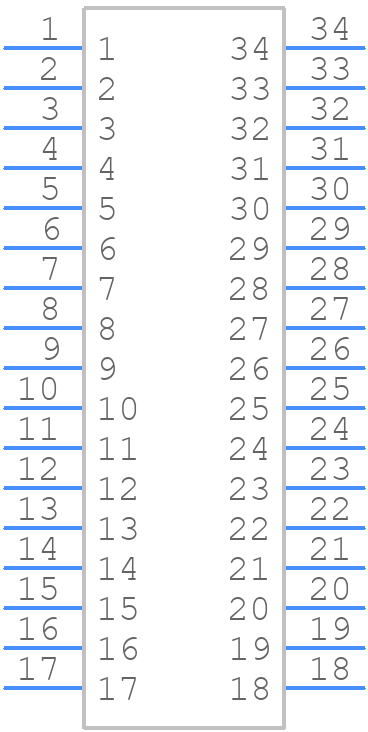

AXK6F34347YG - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXK6F34347YG - Panasonic PCB footprint - Other - Other - AXK6F34347YG-4
click to zoom
3D Models
AXK6F34347YG - Panasonic - 3D model - Other - AXK6F34347YG-4
click to zoom

AXK6F34347YG Details

  • Manufacturer Part Number:

    AXK6F34347YG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8.68

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

AXK6F34347YG Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Apply a conformal coating to the PCB and ensure the device is stored in a dry, nitrogen-filled package. Follow IPC-J-STD-001 guidelines for moisture-sensitive devices.
  • The maximum allowable voltage for the input pins is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation and prevent damage.
  • The AXK6F34347YG is rated for operation up to 125°C, but derating is required above 85°C. Consult the datasheet for specific derating guidelines.
  • Check the oscillator circuit for proper component values and layout. Ensure the crystal resonator is properly connected and not damaged. Consult the datasheet for oscillator circuit guidelines.
