AXK750147G - Panasonic

Description: Board to Board & Mezzanine Connectors CONN SOCKET P4 50 POS 0.4mm

Download AXK750147G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

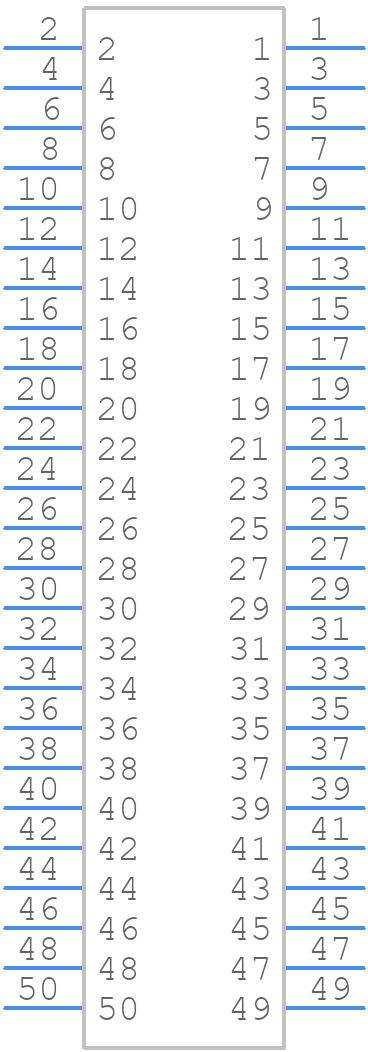

Symbol
AXK750147G - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXK750147G - Panasonic PCB footprint - Other - Other - AXK750147G-1
click to zoom
3D Models
AXK750147G - Panasonic - 3D model - Other - AXK750147G-1
click to zoom

AXK750147G Details

  • Manufacturer Part Number:

    AXK750147G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    LOW PROFILE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

AXK750147G Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the component is recommended, with a minimum size of 10mm x 10mm. A 2-layer PCB with a solid ground plane on the bottom layer is also recommended to reduce thermal resistance.
  • Use a soldering iron with a temperature of 350°C to 370°C, and a solder with a melting point of 217°C to 220°C. Apply a small amount of solder paste to the pads, and use a reflow oven or a hot air gun to solder the component.
  • The maximum operating temperature range for the AXK750147G is -40°C to 125°C. However, the component's performance and reliability may degrade if operated at the extreme ends of this range.
  • Yes, the AXK750147G is designed to withstand vibrations up to 10G. However, it's recommended to secure the component to the PCB using a suitable adhesive or mechanical fastening to prevent damage or detachment.
  • Handle the component by the edges to prevent damage to the pins. Store the component in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the component, and do not touch the pins or components with bare hands.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AXK750147G Overview

Use the download button to access the AXK750147G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXK75, or try a keyword search, such as Headers and Edge Type Connectors
