AXK7L24223G - Panasonic

Description: CONNECTOR, RECEPTACLE, 24 POSITION, 2ROW; Mezzanine Connector Type:Receptacle; Pitch Spacing:0.4mm; No. of Rows:2Rows; No. of Contacts:24Contacts; Connector Mounting:Surface Mount; Contact Material:Copper; Product Range:- RoHS Compliant: Yes

Download AXK7L24223G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

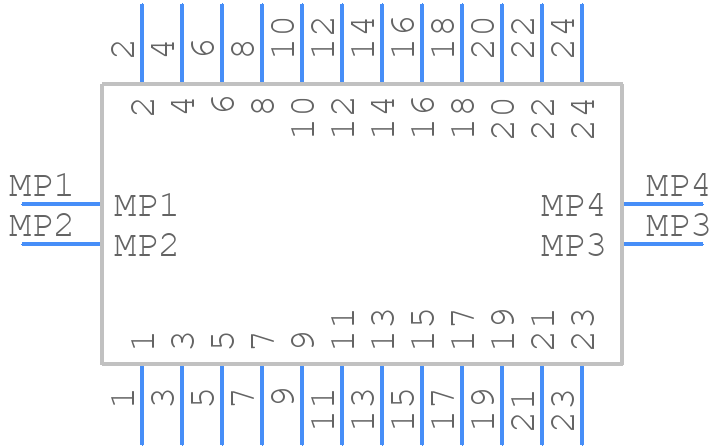

Symbol
AXK7L24223G - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXK7L24223G - Panasonic PCB footprint - Other - Other - AXK7L24223G-1
click to zoom
3D Models
AXK7L24223G - Panasonic - 3D model - Other - AXK7L24223G-1
click to zoom

AXK7L24223G Details

  • Manufacturer Part Number:

    AXK7L24223G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24

  • UL Flammability Code:

    94V-0

AXK7L24223G Frequently Asked Questions (FAQs)

  • The recommended land pattern for the AXK7L24223G can be found in the Panasonic Electronic Components' recommended footprint document or in the IPC-7351 standard.
  • The AXK7L24223G has a thermal pad on the bottom side, which should be connected to a thermal relief pattern on the PCB to ensure efficient heat dissipation. A thermal interface material (TIM) can also be used to improve heat transfer.
  • The AXK7L24223G has an operating temperature range of -40°C to 125°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions.
  • To ensure the reliability of the AXK7L24223G in high-vibration environments, it is recommended to use a secure mounting method, such as a screw or adhesive, and to follow the recommended PCB design and layout guidelines.
  • The AXK7L24223G has built-in ESD protection, but it is still recommended to follow standard ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AXK7L24223G Overview

Use the download button to access the AXK7L24223G schematic symbol, PCB footprint, and 3D model.
