The recommended land pattern for the AXK7L40223G can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad layout, solder mask, and solder paste stencil design.
The AXK7L40223G has a thermal resistance of 10°C/W, which means it can handle a certain amount of power dissipation. To handle thermal management, it's recommended to use a heat sink or a thermal interface material (TIM) to improve heat dissipation. Additionally, ensuring good airflow around the component and using a PCB with a thermal vias can also help to reduce the temperature.
The AXK7L40223G has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it's recommended to derate the component's power dissipation at higher temperatures to ensure reliable operation.
The AXK7L40223G is a surface-mount device, and as such, it can be susceptible to vibration. However, Panasonic Electronic Components provides a vibration test report that shows the component can withstand vibrations up to 10G. It's recommended to consult with the manufacturer or a reliability engineer to determine the suitability of the component for a specific vibration environment.
The AXK7L40223G has a moisture sensitivity level (MSL) of 3, which means it can be sensitive to moisture. To ensure reliability in a humid environment, it's recommended to follow the manufacturer's guidelines for moisture protection, such as using a moisture barrier coating or conformal coating, and ensuring proper storage and handling procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXK7L40223G Overview

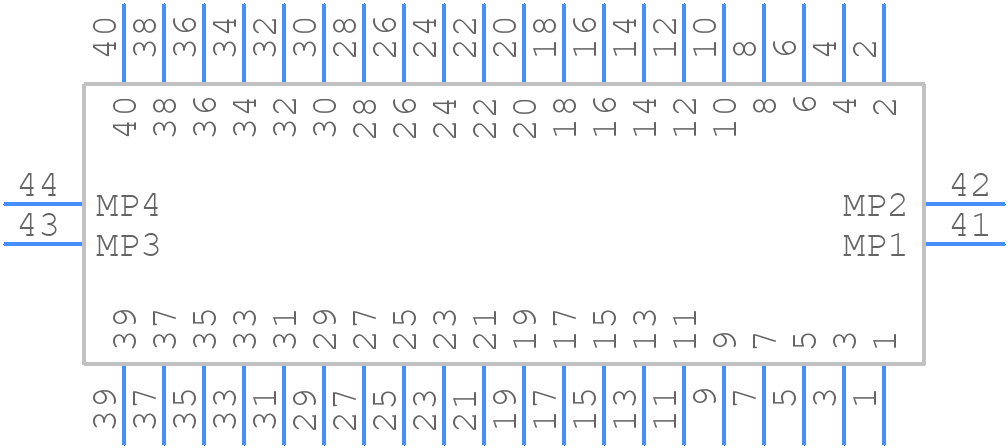

Use the download button to access the AXK7L40223G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXK7L,
or try a keyword search, such as Headers and Edge Type Connectors
