For optimal performance, it is recommended to follow the PCB layout guidelines provided in the onsemi application note AND9407/D. Additionally, ensure good thermal management by providing a heat sink or thermal pad under the device, and using thermal vias to dissipate heat efficiently.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Consult the onsemi application note AND9407/D for more detailed guidance.
The maximum ambient temperature for the AXM0F243-1-TX40 is 85°C. As the ambient temperature increases, the device's performance may degrade, including reduced output voltage accuracy, increased output voltage ripple, and decreased efficiency. Ensure proper thermal management and consider derating the device's performance at higher temperatures.
The AXM0F243-1-TX40 is an industrial-grade device, but it may not meet the specific requirements for high-reliability or automotive applications. Consult the onsemi product catalog and relevant industry standards (e.g., AEC-Q100) to determine if this device meets the necessary qualifications for your specific application.
To troubleshoot common issues, start by verifying the input voltage, output voltage, and output current are within the specified ranges. Check the PCB layout for any errors or omissions, and ensure proper thermal management. Consult the onsemi application note AND9407/D and the device datasheet for troubleshooting guidelines and potential solutions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXM0F243-1-TX40 Overview

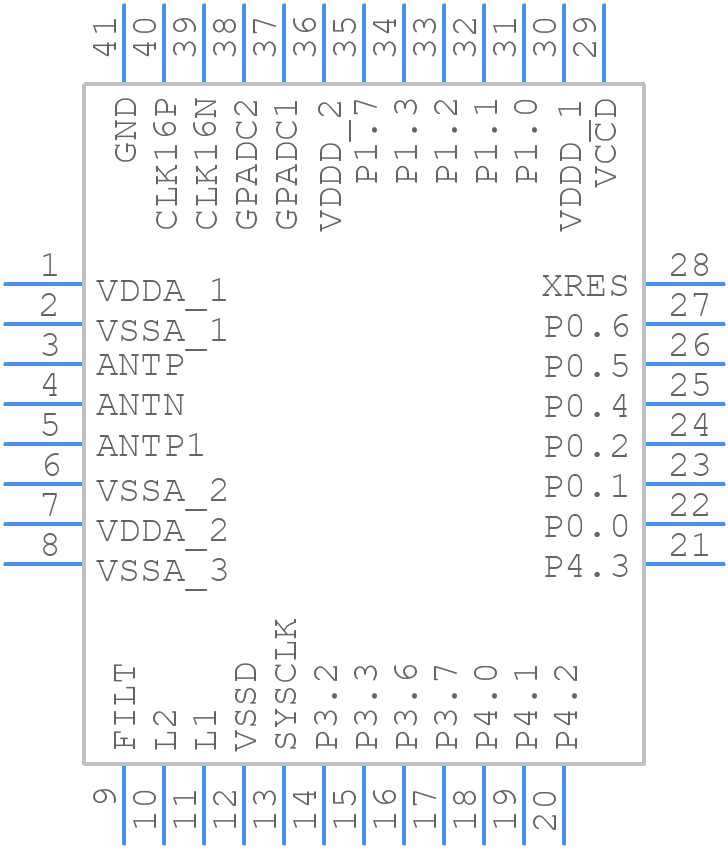

Use the download button to access the AXM0F243-1-TX40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXM0F,
or try a keyword search, such as Multifunction Peripherals
