For optimal thermal performance, it is recommended to have a solid ground plane on the bottom layer of the PCB, and to use thermal vias to connect the ground plane to the thermal pad of the AXT3141F4. Additionally, keeping the PCB traces and components away from the thermal pad can help reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it is recommended to follow the recommended operating temperature range specified in the datasheet. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device temperature within the recommended range.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation.
To troubleshoot issues with the AXT3141F4, start by checking the input voltage, output voltage, and current consumption. Verify that the device is operated within the recommended operating conditions. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to check for any high-frequency noise or oscillations. Consult the datasheet and application notes for troubleshooting guidelines and consider seeking support from Panasonic's technical support team.
Yes, the AXT3141F4 can be used in a parallel configuration to increase output current. However, it is recommended to follow the guidelines provided in the datasheet and application notes for parallel operation, including using identical components, ensuring proper synchronization, and providing adequate heat sinking.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXT3141F4 Overview

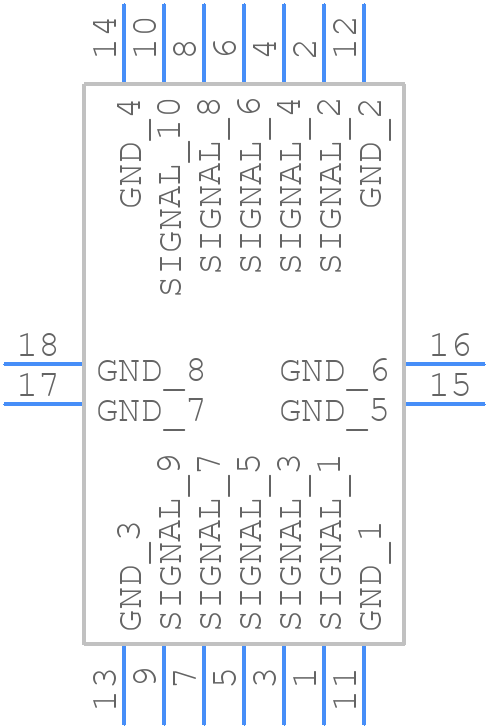

Use the download button to access the AXT3141F4 schematic symbol, PCB footprint, and 3D model.
