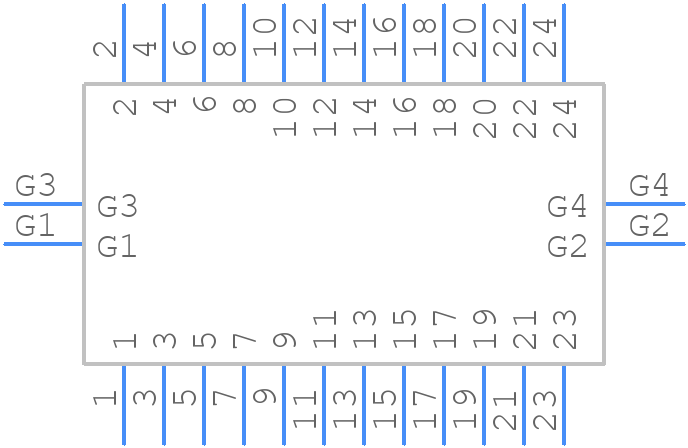

AXT324124 - Panasonic

AXT324124 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are suggested. Refer to Panasonic's application note for detailed guidelines.
• How do I ensure reliable operation in high-temperature environments?
  Operate the device within the recommended temperature range (–40°C to 125°C). Ensure proper heat sinking, and consider using a heat sink or thermal interface material to reduce thermal resistance.
• What are the precautions for handling and storage to prevent damage?
  Handle the device by the body, avoiding touching the pins. Store the device in a dry, cool place, away from direct sunlight and moisture. Use anti-static packaging and follow ESD precautions during handling.
• Can I use the AXT324124 in a high-vibration environment?
  Yes, but ensure the device is properly secured to the PCB using a suitable adhesive or mechanical fastening method. Consider using a vibration-dampening material or potting compound to reduce stress on the device.
• How do I troubleshoot issues with the AXT324124?
  Consult the datasheet and application notes for troubleshooting guidelines. Check for proper power supply, signal integrity, and thermal management. Use oscilloscopes or logic analyzers to debug signal issues.
