AXT330224 - Panasonic

Description: Narrow pitch socket P4S ( 0.4 mm pitch ), 30 positions

Download AXT330224 Model

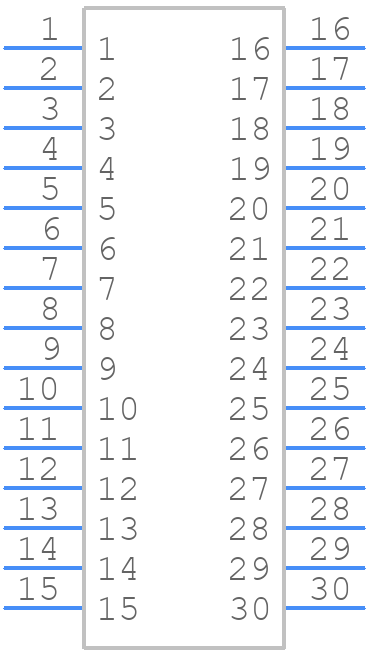

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AXT330224 - Panasonic PCB footprint - Other - Other - AXT330224
click to zoom
3D Models
AXT330224 - Panasonic  - 3D model - Other - AXT330224
click to zoom

AXT330224 Details

  • Manufacturer Part Number:

    AXT330224

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.98

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

AXT330224 Frequently Asked Questions (FAQs)

  • The recommended storage condition for the AXT330224 is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid storing in direct sunlight or near heat sources.
  • While the AXT330224 is designed to be robust, it's not recommended for use in high-vibration environments exceeding 10G. If vibration is unavoidable, consider using additional mounting or damping mechanisms to minimize the impact.
  • To prevent damage during soldering, ensure the component is exposed to temperatures below 260°C for no more than 10 seconds. Use a soldering iron with a temperature range of 200°C to 240°C, and avoid applying excessive force or pressure.
  • For optimal performance, follow the recommended PCB layout and land pattern provided in the datasheet or application notes. Ensure a solid ground plane, and keep the component away from high-current or high-voltage traces.
  • The AXT330224 is not designed for use in humid or wet environments. If exposure to moisture is unavoidable, consider applying a conformal coating or using a moisture-resistant variant of the component.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AXT330224 Overview

Use the download button to access the AXT330224 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXT33, or try a keyword search, such as Headers and Edge Type Connectors
