For optimal thermal performance, it is recommended to have a solid ground plane on the bottom layer of the PCB, and to use thermal vias to connect the ground plane to the thermal pad of the AXT3381F4. Additionally, keep the PCB layout as symmetrical as possible to minimize thermal gradients.
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating temperature range specified in the datasheet. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device temperature within the recommended range.
The recommended input and output capacitors for the AXT3381F4 are typically 10uF to 22uF X5R or X7R ceramic capacitors with a voltage rating of 10V to 25V. However, the specific capacitor selection may vary depending on the application and operating conditions.
To troubleshoot issues with the device's enable pin, first verify that the enable pin is properly connected to a logic-level signal source. Ensure that the enable pin is not floating or shorted to any other pin. Also, check the voltage level on the enable pin to ensure it meets the recommended logic high and logic low levels specified in the datasheet.
The recommended soldering profile for the AXT3381F4 is a reflow soldering process with a peak temperature of 260°C to 270°C, and a dwell time of 10-30 seconds above 220°C. However, it is recommended to consult the datasheet and Panasonic's application notes for specific soldering profile recommendations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXT3381F4 Overview

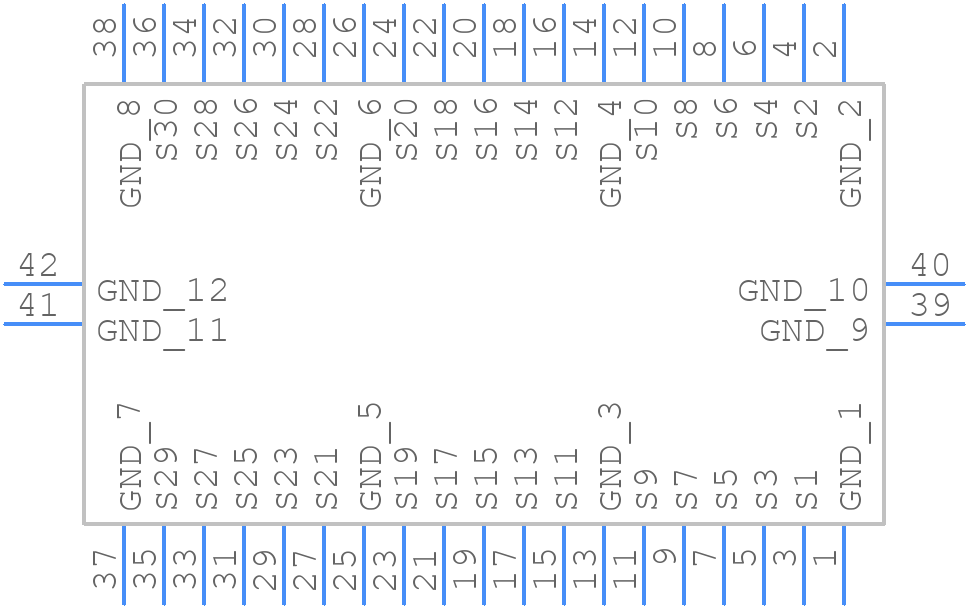

Use the download button to access the AXT3381F4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXT33,
or try a keyword search, such as Headers and Edge Type Connectors
