Store the component in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -20°C to 40°C and humidity below 70%.
Use an anti-static wrist strap, mat, or workstation, and handle the component by the body or pins, avoiding direct contact with the die.
Use a soldering temperature of 250°C to 260°C, with a soldering time of 3 to 5 seconds, and ensure the component is not exposed to temperatures above 260°C for more than 10 seconds.
Yes, but ensure the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method to prevent damage from vibration.
Use a mild solvent, such as isopropyl alcohol or a commercial PCB cleaner, and a soft-bristled brush to gently remove flux residue and other contaminants.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXT420124 Overview

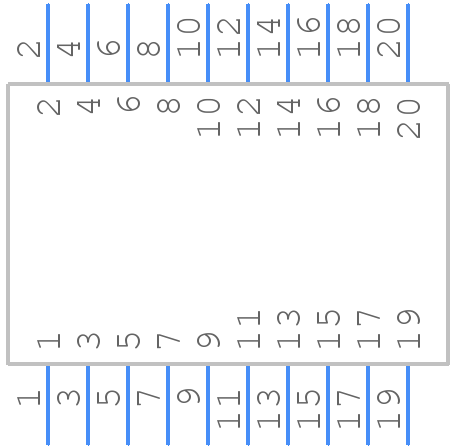

Use the download button to access the AXT420124 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AXT42,
or try a keyword search, such as Headers and Edge Type Connectors
