Store the component in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to 40°C and humidity below 70%. Avoid storing in areas with high temperatures, high humidity, or exposure to corrosive substances.
Handle the component in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the component's pins or leads. Use an anti-static bag or wrap the component in anti-static material during storage or transportation.
The recommended soldering temperature is between 250°C to 260°C, and the soldering time should not exceed 3 seconds. Use a soldering iron with a temperature control and a solder with a melting point below 220°C.
While the AXT420324 is designed to withstand some vibration, it's essential to ensure the component is properly mounted and secured to prevent damage. Consult the datasheet for specific vibration tolerance and consider additional mechanical support if necessary.
Use a soft-bristled brush or a lint-free cloth to gently remove any flux residue or solder splashes. Avoid using harsh chemicals, abrasive materials, or ultrasonic cleaning, as they may damage the component.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXT420324 Overview

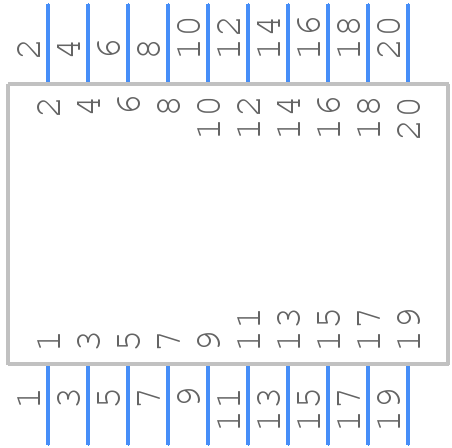

Use the download button to access the AXT420324 schematic symbol and PCB footprint.
