AXT440124 - Panasonic

Description: 40 Position Connector Header, Center Strip Contacts Surface Mount Gold

Download AXT440124 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

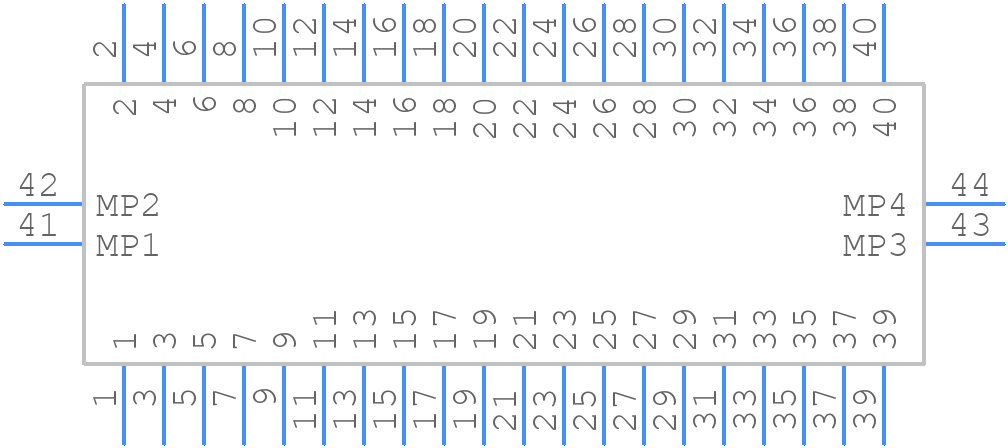

AXT440124 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AXT440124 - Panasonic PCB footprint - Other - Other - AXT440124-5
click to zoom
3D Models
AXT440124 - Panasonic - 3D model - Other - AXT440124-5
click to zoom

AXT440124 Details

  • Manufacturer Part Number:

    AXT440124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6.98

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    40

  • UL Flammability Code:

    94V-0

AXT440124 Frequently Asked Questions (FAQs)

  • The recommended storage condition for the AXT440124 is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 70%. Avoid storing the components in direct sunlight or near heat sources.
  • To prevent ESD damage, handle the AXT440124 with an anti-static wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the component's pins or leads with bare hands.
  • The maximum allowable voltage for the AXT440124 is 50V. Exceeding this voltage may cause permanent damage to the component.
  • The AXT440124 is rated for operation up to 125°C. However, it's recommended to derate the component's power handling at high temperatures to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • Use a soldering iron with a temperature of 350°C or lower, and ensure the soldering time is within 3 seconds. Avoid applying excessive force or pressure to the component during soldering.
