The recommended land pattern for the AXT512124 can be found in the Panasonic Electronic Components' recommended footprint document or by consulting with a PCB design expert. A general guideline is to use a land pattern with a minimum pad size of 1.5mm x 1.5mm and a spacing of 0.5mm between pads.
To handle thermal considerations, ensure good thermal conductivity between the device and the PCB by using thermal vias and a thermal pad. Also, consider using a heat sink or a thermal interface material to reduce thermal resistance. Consult the datasheet for thermal resistance values and follow recommended thermal design guidelines.
To prevent electrostatic discharge (ESD) damage, handle the AXT512124 with ESD-protective equipment and follow proper ESD handling procedures. Ensure the PCB design includes ESD protection components, such as TVS diodes or ESD protection arrays, and follow recommended ESD protection guidelines.
The AXT512124 is designed to withstand moderate vibration levels. However, for high-vibration environments, consider using additional mechanical support, such as potting or conformal coating, to ensure the device remains securely attached to the PCB. Consult with a mechanical engineer or a reliability expert for specific guidance.
Ensure the AXT512124 operates within its recommended operating conditions by monitoring and controlling the voltage, current, and temperature. Implement over-voltage protection, over-current protection, and thermal monitoring to prevent damage from excessive voltage, current, or temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXT512124 Overview

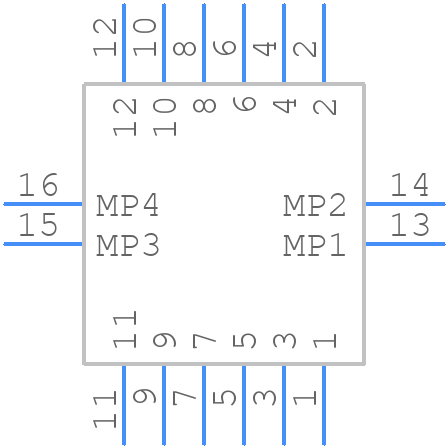

Use the download button to access the AXT512124 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AXT51,
or try a keyword search, such as Headers and Edge Type Connectors
