Part Image

AXT534124 - Panasonic

Description: 34 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold 0.3A 150V AC

Download AXT534124 Model

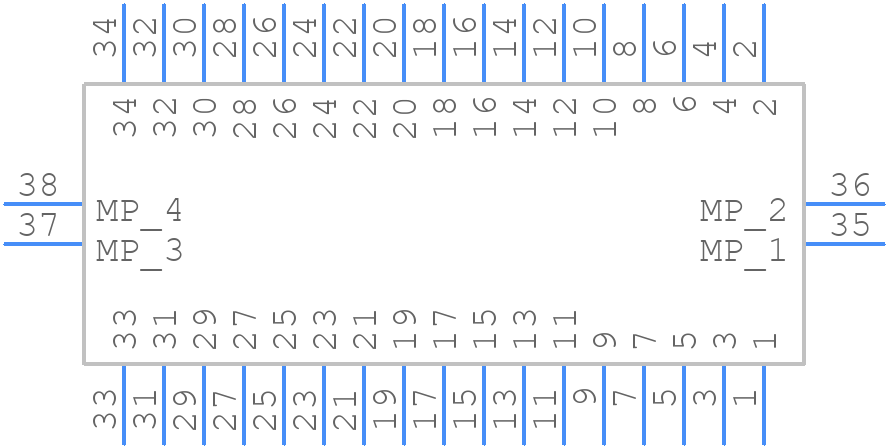

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AXT534124 - Panasonic PCB footprint - Other - Other - AXT534124-1
click to zoom
3D Models
AXT534124 - Panasonic  - 3D model - Other - AXT534124-1
click to zoom

AXT534124 Details

  • Manufacturer Part Number:

    AXT534124

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.48

  • Board Mounting Option:

    SOLDER HOLDING POSTS

  • Body Breadth:

    0.142 inch

  • Body Depth:

    0.038 inch

  • Body Length:

    0.366 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    90 mΩ

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Dielectric Withstanding Voltage:

    150VAC V

  • Durability:

    50 Cycles

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    .973 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.016 inch

  • Mating Contact Row Spacing:

    0.03 inch

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    3.28 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    0.3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.4 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    .1668 N
