Store the component in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to 40°C and humidity below 70%. Avoid storing in areas with high temperatures, high humidity, or exposure to corrosive substances.
Handle the component in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the component's pins or leads. Use ESD-safe packaging and storage materials.
The recommended soldering temperature is 250°C (max) for 3 seconds (max) using a soldering iron, or 260°C (max) for 10 seconds (max) using a reflow oven. Ensure the component is not exposed to excessive heat or thermal shock.
While AXT612124 is designed to withstand normal operating conditions, it's not recommended for high-vibration or high-shock environments without proper mounting and securing. Consult Panasonic's application notes or contact their support for guidance on specific use cases.
Use a soft, dry brush to remove any debris or dust. For more thorough cleaning, use a mild solvent like isopropyl alcohol or a specialized electronics cleaning solution. Avoid using harsh chemicals, abrasive materials, or ultrasonic cleaning methods.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXT612124 Overview

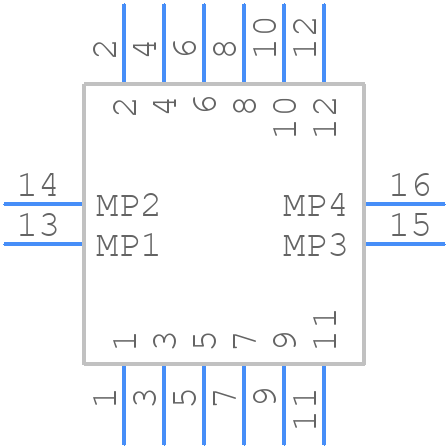

Use the download button to access the AXT612124 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXT61,
or try a keyword search, such as Headers and Edge Type Connectors
