Store the component in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to 40°C and humidity below 70%. Avoid storing in areas with high temperatures, high humidity, or exposure to corrosive substances.
Handle the component in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the component's pins or leads. Use ESD-safe packaging and storage materials.
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. Avoid exceeding 280°C (536°F) or 5 seconds to prevent damage to the component.
While the AXT626124 is designed to withstand some vibration, it's essential to ensure the component is properly secured and the PCB is designed to minimize vibration stress. Consult the datasheet and Panasonic's application notes for specific guidance.
Consult the datasheet and application notes for troubleshooting guidelines. Check for proper component orientation, soldering, and PCB design. Use oscilloscopes or logic analyzers to diagnose signal integrity issues. Contact Panasonic's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXT626124 Overview

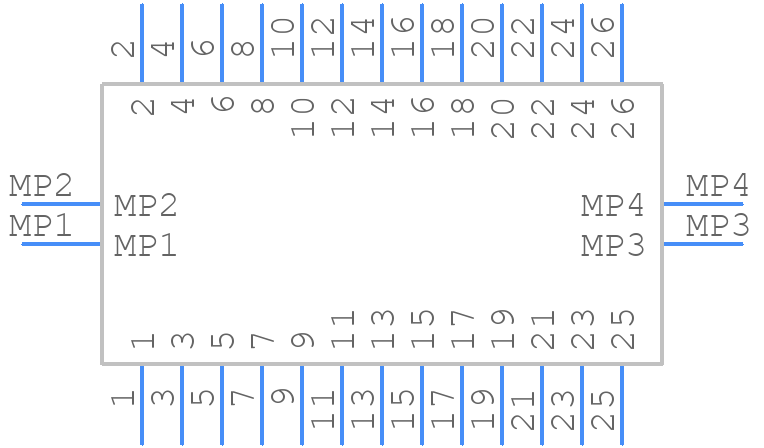

Use the download button to access the AXT626124 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXT62,
or try a keyword search, such as Headers and Edge Type Connectors
