Store the component in a dry, cool place, away from direct sunlight, with a temperature range of -20°C to 40°C and humidity below 70%. Avoid storing in areas with high temperatures, high humidity, or exposure to corrosive substances.
Handle the component in an ESD-protected environment, wear an ESD wrist strap or use an ESD mat, and avoid touching the component's pins or leads. Use ESD-safe packaging and storage materials.
The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. Use a soldering iron with a temperature control and a solder with a melting point below 220°C (428°F).
While the AXT634124 is designed to withstand some vibration, it's essential to ensure the component is properly secured to the PCB and the PCB is mounted securely to the device. Consult the datasheet for specific vibration tolerance and consider additional mechanical support if necessary.
Use a soft, dry brush to remove any debris or dust from the component and its pins. Avoid using chemicals, solvents, or abrasive materials that can damage the component or its pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AXT634124 Overview

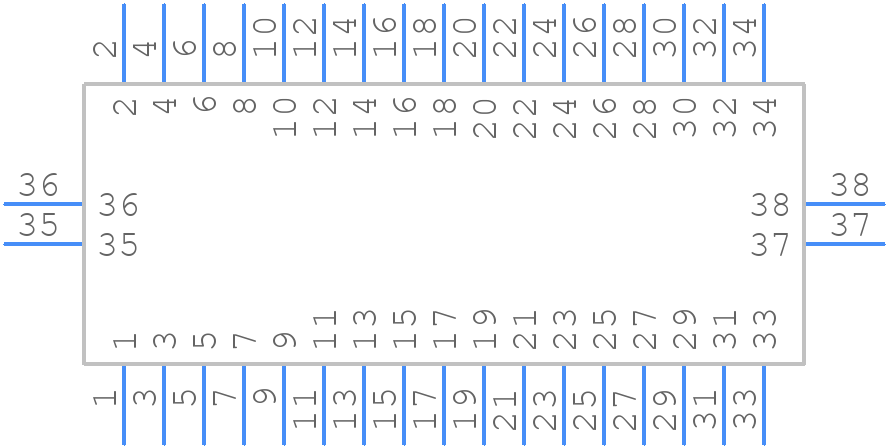

Use the download button to access the AXT634124 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AXT63,
or try a keyword search, such as Headers and Edge Type Connectors
