AY0438-I/P - Microchip

Description: AY0438-I/P, LCD Driver, 4-Digits 32-Segments, +3 → +8.5 V, 40-Pin PDIP

Download AY0438-I/P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

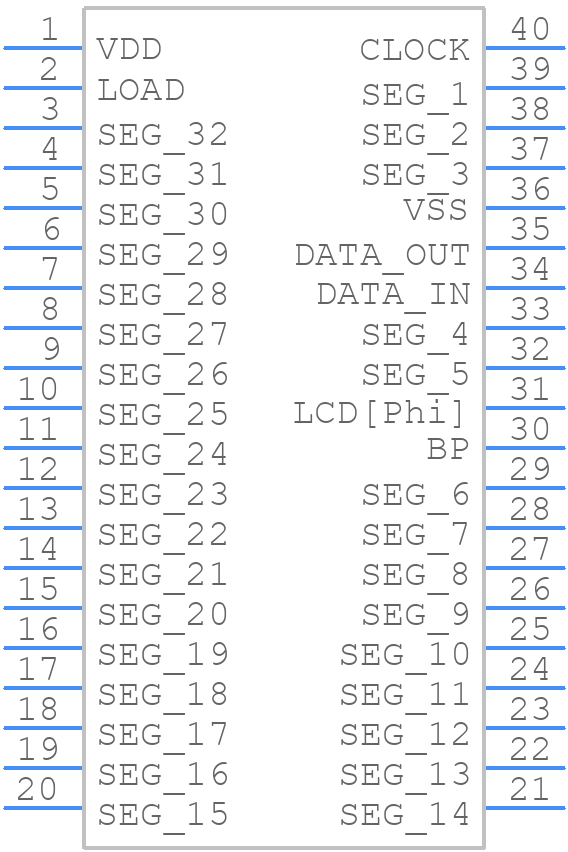

AY0438-I/P - Microchip - PCB symbol
click to zoom
PCB Footprints

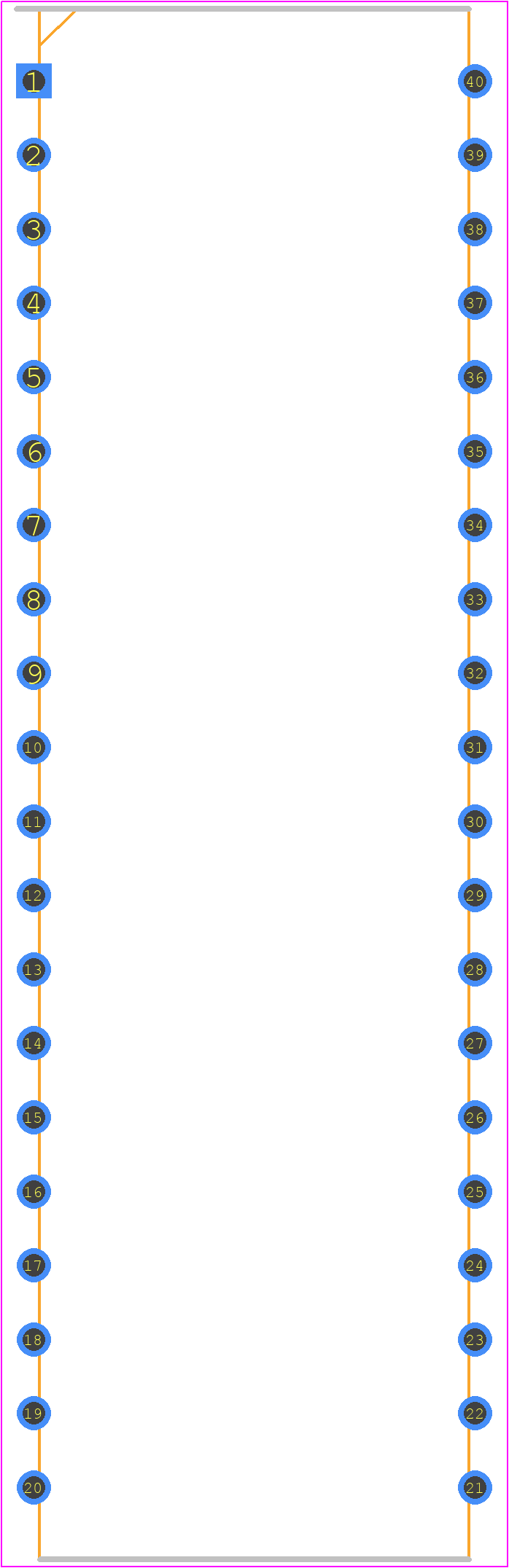

AY0438-I/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 40-Lead Plastic Dual In-Line (P) - 600 mil Body [PDIP]_2024
click to zoom
3D Models
AY0438-I/P - Microchip - 3D model - Dual-In-Line Packages - 40-Lead Plastic Dual In-Line (P) - 600 mil Body [PDIP]_2024
click to zoom

AY0438-I/P Details

  • Manufacturer Part Number:

    AY0438-I/P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    PDIP-40

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    9

  • Data Input Mode:

    SERIAL

  • Display Mode:

    SEGMENT

  • Interface IC Type:

    LIQUID CRYSTAL DISPLAY DRIVER

  • JESD-30 Code:

    R-PDIP-T40

  • JESD-609 Code:

    e3

  • Length:

    52.26 mm

  • Multiplexed Display Capability:

    NO

  • Number of Digits/Characters:

    4-DIGIT

  • Number of Functions:

    1

  • Number of Segments:

    32

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP40,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.83 mm

  • Supply Current-Max:

    0.06 mA

  • Supply Voltage-Max:

    8.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

  • fmax-Min:

    1.5 MHz

AY0438-I/P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the AY0438-I/P is -40°C to +85°C.
  • To ensure reliable communication, use proper shielding, grounding, and decoupling techniques. Additionally, consider using error-checking protocols and implementing noise-reducing measures such as filtering or shielding.
  • The maximum current draw of the AY0438-I/P is typically around 10mA. When designing the power supply, ensure it can provide a stable voltage and sufficient current to meet the device's requirements, taking into account any voltage drops or losses in the system.
  • To troubleshoot issues, start by reviewing the datasheet and application notes. Check the device's configuration, clock settings, and communication protocols. Use debugging tools, such as logic analyzers or oscilloscopes, to monitor signals and identify potential issues.
  • Yes, the AY0438-I/P can be used in battery-powered devices. To minimize power consumption, consider using power-saving modes, reducing clock frequencies, and optimizing the device's configuration for low-power operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AY0438-I/P Overview

Use the download button to access the AY0438-I/P schematic symbol, PCB footprint, and 3D model.
