AYF333735 - Panasonic

Description: FFC & FPC Connectors FPC Connector Y3B (0.3mm pitch, 37-pin)

Download AYF333735 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

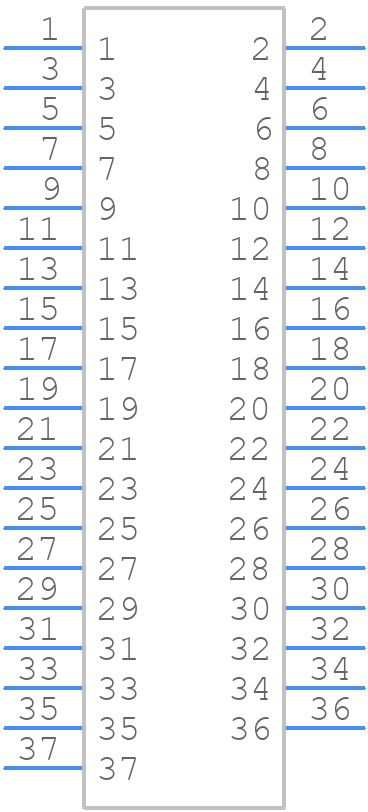

AYF333735 - Panasonic - PCB symbol
click to zoom
PCB Footprints
AYF333735 - Panasonic PCB footprint - Other - Other - AYF333735-1
click to zoom
3D Models
AYF333735 - Panasonic - 3D model - Other - AYF333735-1
click to zoom

AYF333735 Details

  • Manufacturer Part Number:

    AYF333735

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    0.035 inch

  • Body Depth:

    0.116 inch

  • Body Length:

    0.496 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    100 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    150VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.011 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.76 mm

  • Rated Current (Signal):

    0.2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

AYF333735 Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for AYF333735 can be found in the Panasonic's recommended PCB layout document, which can be obtained by reaching out to Panasonic's support team or through their website.
  • Although the datasheet specifies the operating temperature range as -40°C to 85°C, it's recommended to derate the component's performance at extreme temperatures. It's best to consult with Panasonic's application engineers for specific guidance on temperature derating.
  • AYF333735 is designed to meet the vibration requirements of IEC 60068-2-6. However, for specific high-vibration applications, it's recommended to consult with Panasonic's application engineers to ensure the component meets the required vibration specifications.
  • The recommended storage condition for AYF333735 is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid storing the components in direct sunlight or near heat sources.
  • AYF333735 is not specifically designed for automotive applications. However, Panasonic offers other components that meet the AEC-Q200 standard. It's recommended to consult with Panasonic's application engineers to determine the suitability of AYF333735 for specific automotive applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AYF333735 Overview

Use the download button to access the AYF333735 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AYF33, or try a keyword search, such as Headers and Edge Type Connectors
