AYF530465T - Panasonic

Description: Conn FPC Connector SKT 4 POS 0.5mm Solder RA SMD T/R

Download AYF530465T Model

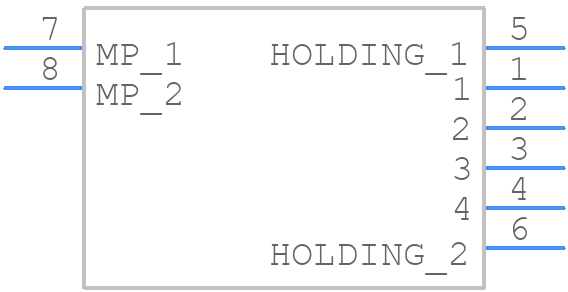

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AYF530465T - Panasonic PCB footprint - Other - Other - AYF530465T
click to zoom
3D Models
AYF530465T - Panasonic  - 3D model - Other - AYF530465T
click to zoom

AYF530465T Details

  • Manufacturer Part Number:

    AYF530465T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    17 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Body Breadth:

    0.039 inch

  • Body Depth:

    0.126 inch

  • Body Length:

    0.197 inch

  • Connector Type:

    FFC/FPC CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    100 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Dielectric Withstanding Voltage:

    250VAC V

  • Durability:

    20 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.02 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    0.5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    0.5 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

AYF530465T Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes. It's essential to follow these guidelines to ensure proper soldering and to prevent thermal issues.
  • To handle the high inrush current, use a suitable current-limiting resistor or an NTC thermistor in series with the relay coil. This will help reduce the inrush current and prevent damage to the relay or surrounding components.
  • The maximum allowable voltage drop across the relay contacts is typically around 100 mV. Exceeding this value may lead to contact welding or other reliability issues.
  • While the relay is rated for operation up to 85°C, it's essential to consider the derating curves and thermal management in high-temperature environments. Ensure proper heat sinking and thermal design to prevent overheating and reliability issues.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Additionally, consider using a relay with built-in EMC features, such as the AYF530465T's internal shielding.
