Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output stages. The input and output pins should be placed on the top layer, and the ground pins should be placed on the bottom layer. A thermal via should be placed under the package to improve heat dissipation.
To ensure the AYF532865T operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Implement thermal management techniques such as heat sinks or thermal interfaces to keep the junction temperature below 150°C. Also, ensure the input voltage does not exceed 15V and the output current does not exceed 5A.
Panasonic recommends using a ceramic capacitor with a value between 10nF to 100nF and a voltage rating of 25V or higher. The capacitor should be placed as close as possible to the input pins to minimize noise and ensure stable operation.
To troubleshoot issues with the AYF532865T, start by checking the PCB layout and ensuring it meets the recommended layout guidelines. Verify that the input voltage and output current are within the specified limits. Check for any signs of physical damage or contamination on the device. Use a thermal camera or thermometer to measure the device's temperature. If the issue persists, consult the datasheet and application notes or contact Panasonic's technical support.
Yes, the AYF532865T is suitable for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade components. However, ensure that the device is used within its specified operating conditions and that the application meets the necessary safety and reliability standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AYF532865T Overview

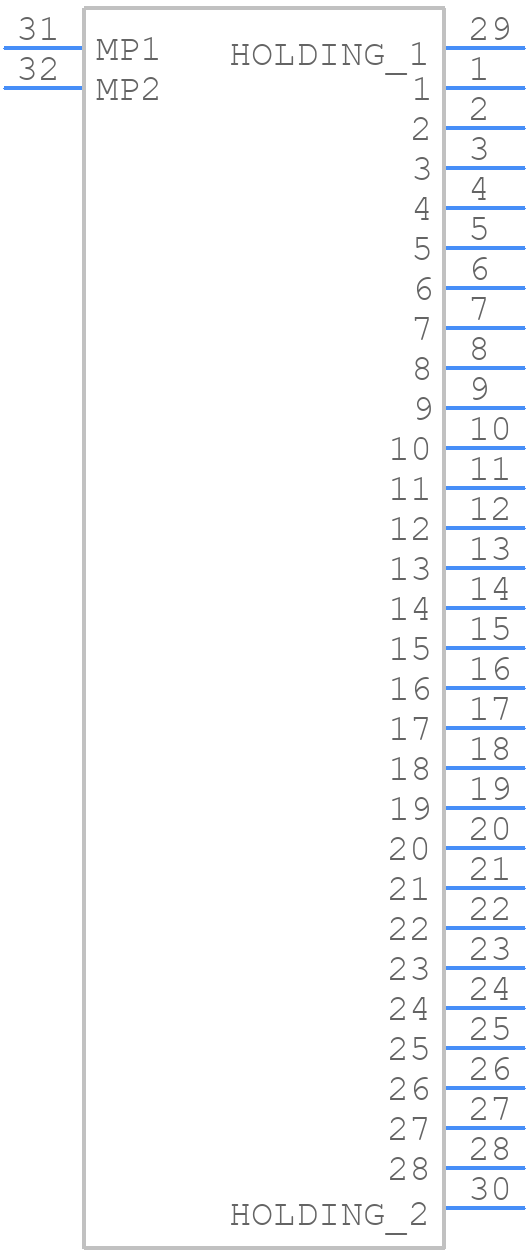

Use the download button to access the AYF532865T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AYF53,
or try a keyword search, such as Headers and Edge Type Connectors
