Description:The AYM-60 series is a range of fully encapsulated AC-DC power modules. These high performance products feature an extended operating temperature range of -40℃ to +80℃. Universal input voltage 85-264VAC and UL/IEC/EN safety approvals including medical safety and UL 508 listing qualify these power supplies modules for applications in products with worldwide markets. EMI Emission EN 55011/32 Class B Approved.
Minmax recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal pad on the bottom of the module should be connected to a heat sink or a metal plate for efficient heat dissipation.
Minmax recommends operating the module within the specified temperature range (-40°C to 85°C). Ensure proper thermal management, avoid overheating, and follow the recommended derating curves for high-temperature applications.
The AYM-60S12 module is designed to meet CISPR 22 Class B emissions standards. To minimize EMI and RFI, use a metal shielded enclosure, keep the module away from antennas and high-frequency components, and follow proper PCB layout and grounding practices.
Yes, the AYM-60S12 module can be used in redundant or parallel configurations to achieve higher power output. However, ensure proper synchronization and control of the modules to avoid oscillations and instability.
The AYM-60S12 module meets safety standards such as UL 60950-1, EN 60950-1, and IEC 60950-1. Ensure proper installation, handling, and operation of the module to avoid electrical shock, fire, or other hazards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AYM-60S12 Overview

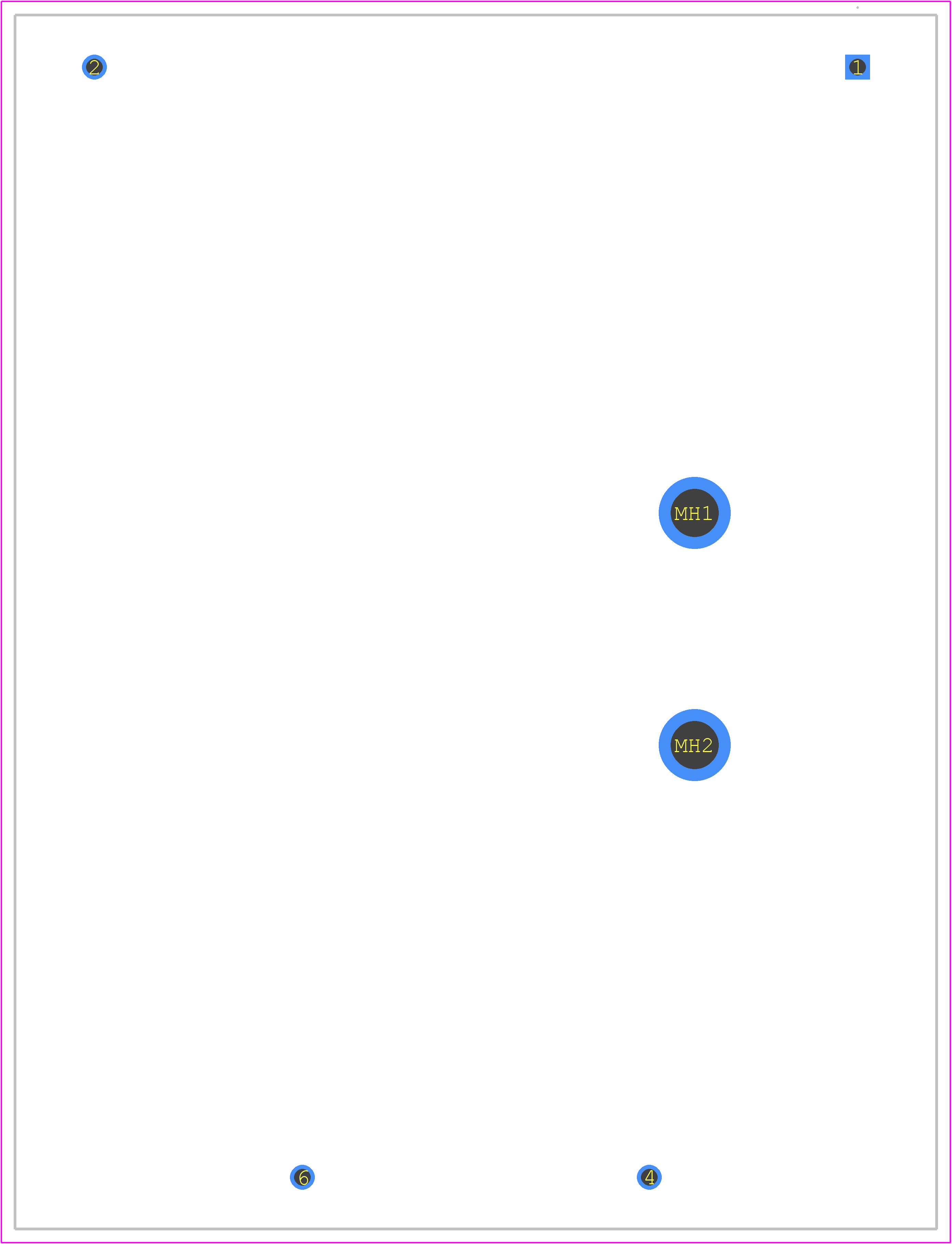

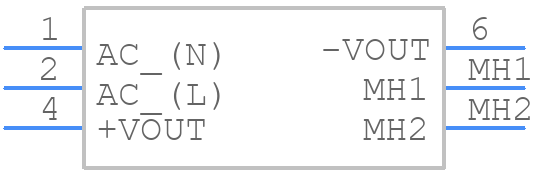

Use the download button to access the AYM-60S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AYM-6,
or try a keyword search, such as Power Supply Modules
