The recommended land pattern for AZ23C6V8-TP can be found in the IPC-7351 standard or by consulting with the manufacturer's application notes. A general guideline is to use a land pattern with a pad size of 0.8mm x 1.2mm and a spacing of 0.5mm between pads.
To handle thermal considerations, ensure that the device is mounted on a thermally conductive surface, and consider using thermal vias or thermal pads to dissipate heat. The device's thermal resistance (RθJA) is typically around 25°C/W, so ensure that your design can handle the expected power dissipation.
The recommended soldering profile for AZ23C6V8-TP is a peak temperature of 240°C to 250°C, with a dwell time of 30 seconds to 60 seconds. Ensure that the soldering process is within the manufacturer's recommended specifications to prevent damage to the device.
While AZ23C6V8-TP is a high-quality device, it may not meet the specific requirements for high-reliability or aerospace applications. Consult with the manufacturer or a qualified reliability engineer to determine if the device meets the necessary standards and specifications for your application.
Ensure that the device is properly biased by following the recommended operating conditions outlined in the datasheet. This typically includes providing a stable input voltage, ensuring proper current limiting, and avoiding electrical overstress.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AZ23C6V8-TP Overview

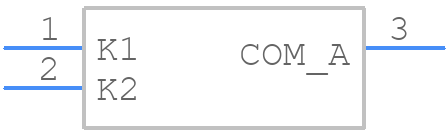

Use the download button to access the AZ23C6V8-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AZ23C,
or try a keyword search, such as Zener Diodes
