Ag5800 - Silvertel

Description: Isolated PoE Module DC DC Converter 2 Output 12V 24V 7.05A 36V - 57V Input

Download Ag5800 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this Ag5800 model

Email notifications will be applied after download.

Send part feedback

Symbol

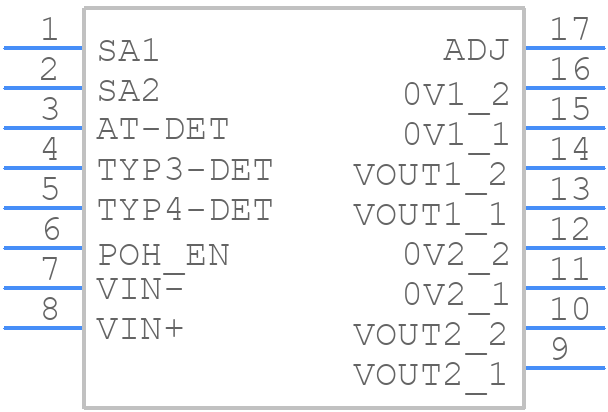

Ag5800 - Silvertel - PCB symbol

PCB Footprints

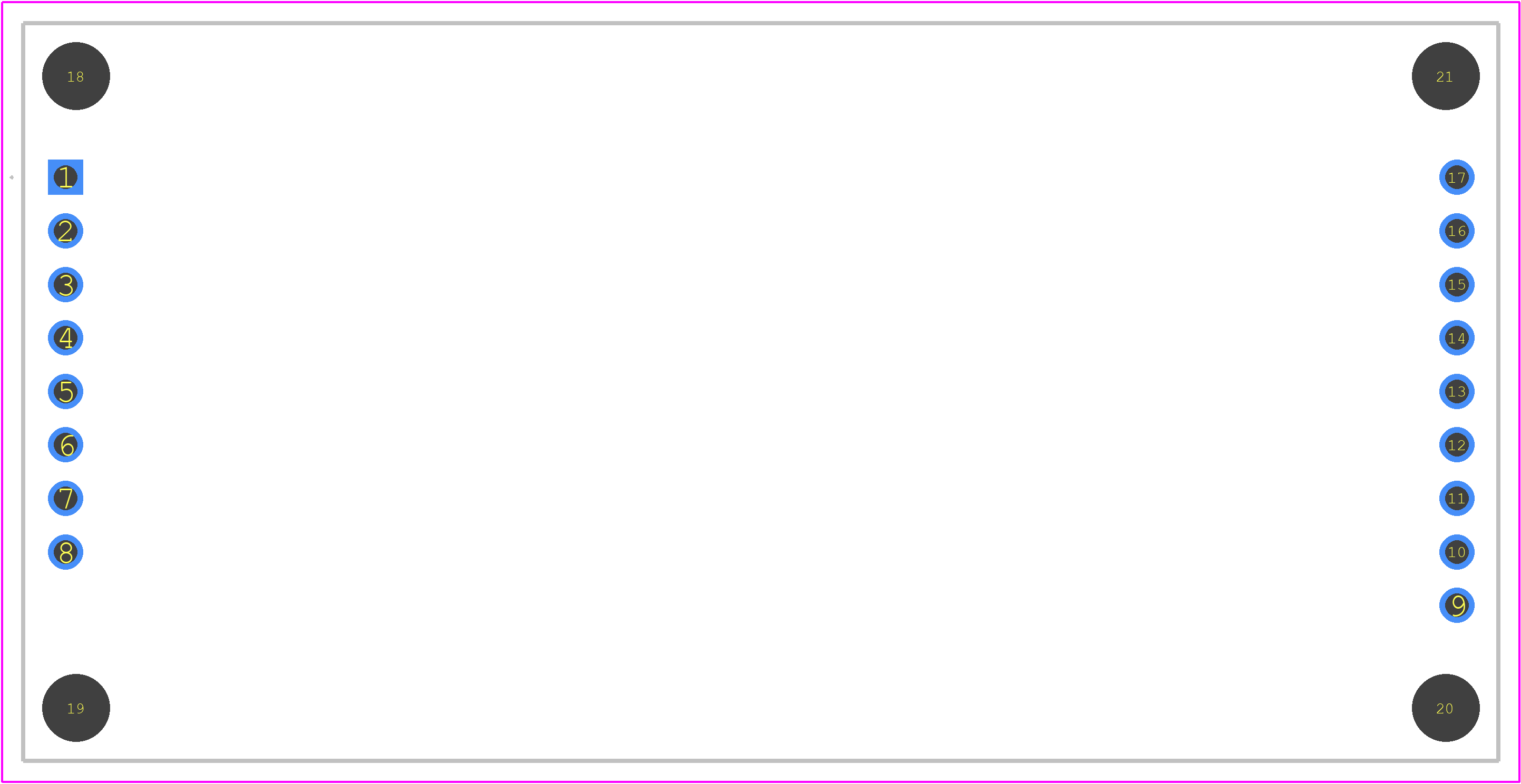

Ag5800 - Silvertel PCB footprint - Other - Other - Ag5800-1

3D Models

Ag5800 - Silvertel - 3D model - Other - Ag5800-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for Ag5800
Part Number Ag5800
Manufacturer Silvertel
Pin Count 17
Part Category Power Supply
Package Category Other
Footprint Name Other - Ag5800-1
Released Date Jun 4, 2020
Last Modified Date Jul 12, 2024 11:31 AM UTC
