B0322J5050AHF footprint, schematic symbol and 3D model by ANAREN

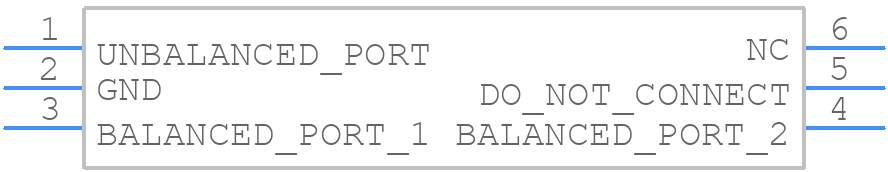

Symbol

PCB Footprints

3D Models

B0322J5050AHF Details

The recommended land pattern for the B0322J5050AHF can be found in the Anaren Microwave application note AN-1121, which provides guidelines for PCB layout and assembly.
To prevent damage, handle the B0322J5050AHF by the edges, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD).
The maximum power handling of the B0322J5050AHF is 50 W, but this can be affected by factors such as operating frequency, temperature, and impedance matching.
The B0322J5050AHF is rated for operation up to 125°C, but derating may be necessary for extended operation at high temperatures. Consult the datasheet and application notes for more information.
The B0322J5050AHF has a nominal impedance of 50 ohms, but impedance matching may be necessary for optimal performance. Consult the datasheet and application notes for guidance on impedance matching.

Expert Contribution

System Verified

Community Approved

Use the download button to access the B0322J5050AHF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like B0322, or try a keyword search, such as RF Transformers
