B0922N7575AHF footprint, schematic symbol and 3D model by ANAREN

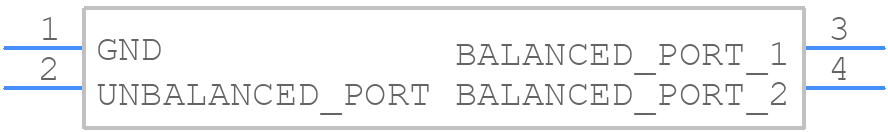

Symbol

PCB Footprints

3D Models

B0922N7575AHF Details

The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and thermal management.
The B0922N7575AHF has a thermal pad on the bottom, which should be connected to a thermal ground plane on the PCB. A thermal interface material (TIM) can be used to improve heat transfer. Ensure good airflow and consider using a heat sink if high power dissipation is expected.
The B0922N7575AHF is rated for operation from -40°C to +125°C, but derating may be necessary for high-power applications or extreme environmental conditions.
The B0922N7575AHF has a nominal impedance of 50 ohms. To match the impedance, use a pi-network or T-network topology with capacitors and inductors. Consult the Anaren Microwave application note AN-115 for more information.
The B0922N7575AHF is rated for a maximum power input of 20 dBm (100 mW). Exceeding this rating may cause damage to the component or affect its performance.

Expert Contribution

System Verified

Community Approved

Use the download button to access the B0922N7575AHF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like B0922, or try a keyword search, such as RF Transformers
