The recommended torque for the screw terminals is 0.5-0.8 Nm (5-8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the B10-029-266-032 connector is designed to withstand vibrations. EDAC Inc specifies that it meets the IEC 61373 Cat 1, Class B vibration standard, making it suitable for use in applications with moderate to high vibration levels.
The B10-029-266-032 connector has a rating of IP67, which means it provides protection against solid objects and water ingress up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating in outdoor environments.
The B10-029-266-032 connector has an operating temperature range of -40°C to +125°C (-40°F to +257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
While the datasheet specifies AWG 24-20 wire sizes, it's possible to use other wire sizes with the B10-029-266-032 connector. However, it's crucial to consult with EDAC Inc or a qualified engineer to ensure the connector's performance and reliability are not compromised.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B10-029-266-032 Overview

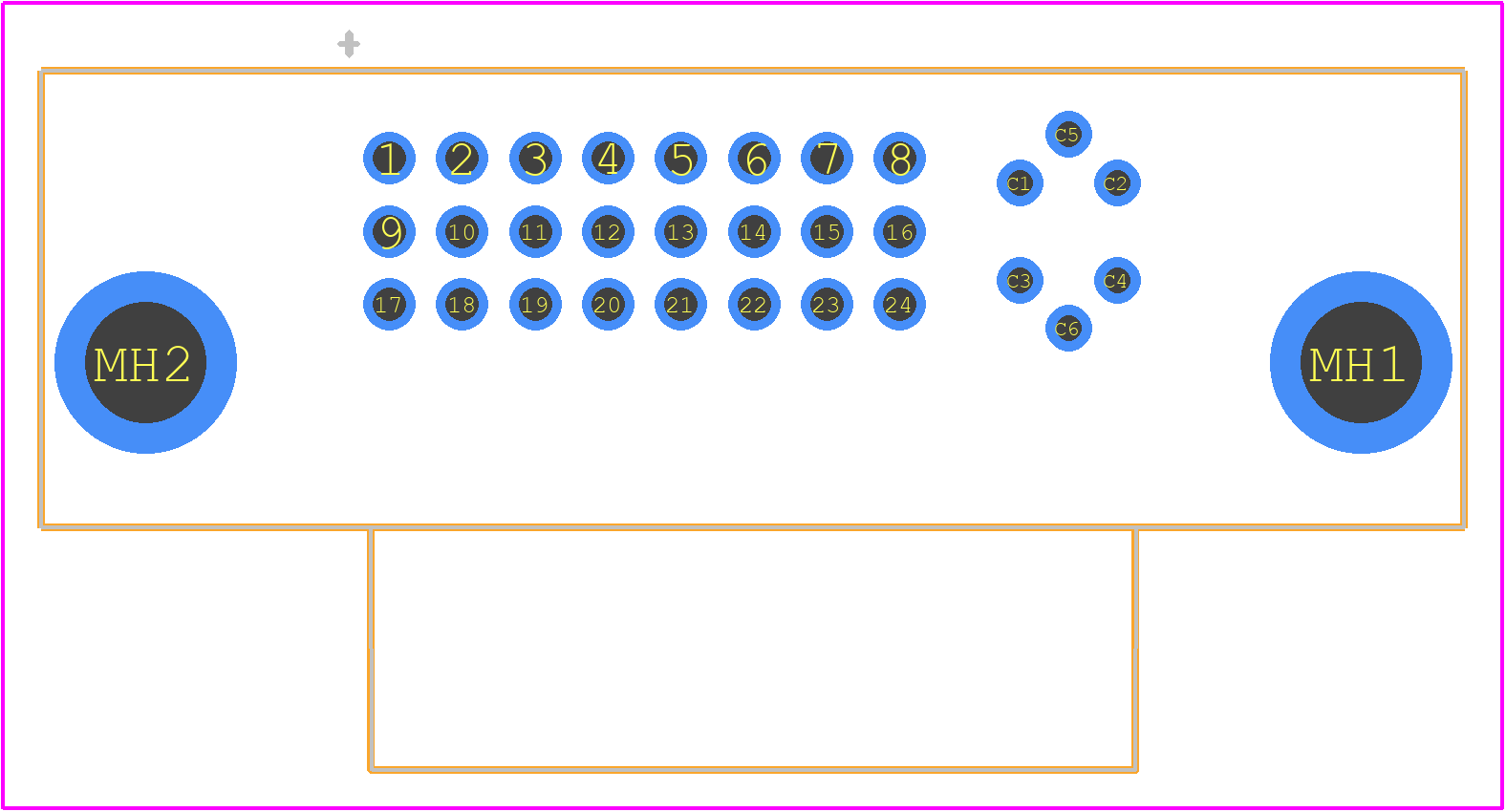

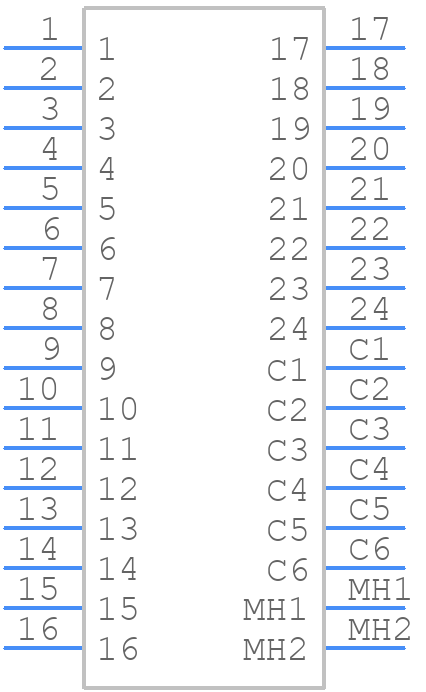

Use the download button to access the B10-029-266-032 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like B10-0,
or try a keyword search, such as Telecom and Datacom Connectors
