B125C1500G-E4/51 - Vishay

Description: Vishay B125C1500G-E4/51, Bridge Rectifier, 1.6A 200V, 4-Pin WOG

Download B125C1500G-E4/51 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

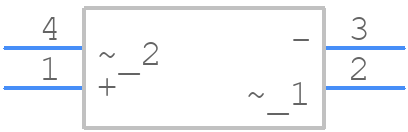

B125C1500G-E4/51 - Vishay - PCB symbol
click to zoom
PCB Footprints

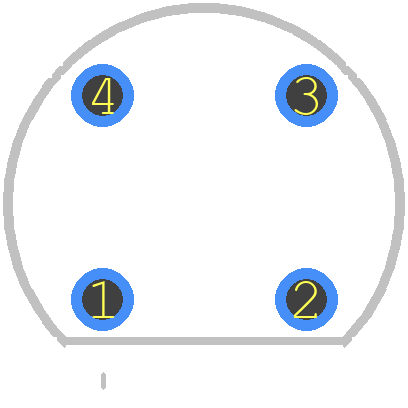

B125C1500G-E4/51 - Vishay PCB footprint - Other - Other - WOG_2
click to zoom
3D Models
B125C1500G-E4/51 - Vishay - 3D model - Other - WOG_2
click to zoom

B125C1500G-E4/51 Details

  • Manufacturer Part Number:

    B125C1500G-E4/51

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, CASE WOG, 4 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.1

  • Breakdown Voltage-Min:

    200 V

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1 V

  • JESD-30 Code:

    O-PBCY-W4

  • JESD-609 Code:

    e4

  • Non-rep Pk Forward Current-Max:

    50 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    CYLINDRICAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    200 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Silver (Ag)

  • Terminal Form:

    WIRE

  • Terminal Position:

    BOTTOM
