B12JJHCF footprint, schematic symbol and 3D model by NKK Switches

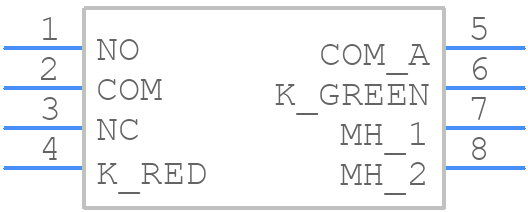

Symbol

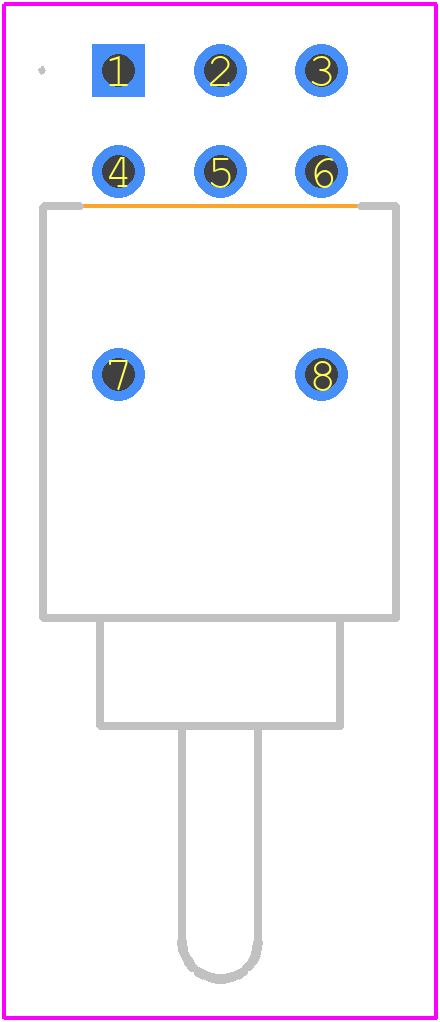

PCB Footprints

B12JJHCF Details

The recommended operating temperature range for the B12JJHCF switch is -20°C to 85°C, although it can withstand storage temperatures from -40°C to 100°C.
Yes, the B12JJHCF switch is designed for high-reliability applications, with a lifespan of up to 10,000 cycles and a contact resistance of 10mΩ or less.
Yes, the B12JJHCF switch is designed to operate in harsh environments, with a rating of IP67 for dust and water resistance, and can withstand vibration and shock up to 10G and 50G, respectively.
The recommended cleaning method for the B12JJHCF switch is to use a soft brush or a lint-free cloth with a mild detergent and water. Avoid using harsh chemicals, abrasive materials, or ultrasonic cleaning.
Yes, the B12JJHCF switch can be mounted on a PCB using the provided through-hole terminals or by using a PCB-mounting adapter. Ensure proper soldering and assembly to prevent damage to the switch.

Community Provided

System Verified

Community Approved

Use the download button to access the B12JJHCF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like B12JJ, or try a keyword search, such as Toggle Switches
