B12JJPF - NKK Switches

Description: Toggle Switches SPDT ON-ON P.4VA GRN STRAIGHT PC

Download B12JJPF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this B12JJPF model

Email notifications will be applied after download.

Send part feedback

Symbol

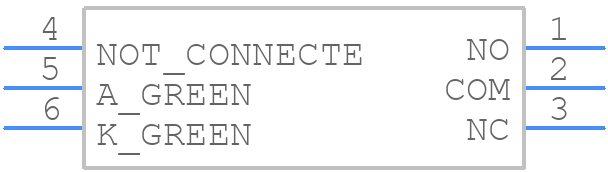

B12JJPF - NKK Switches - PCB symbol

PCB Footprints

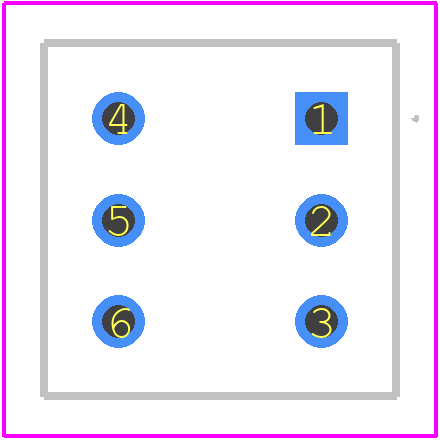

B12JJPF - NKK Switches PCB footprint - Other - Other - B12JJPF-2

3D Models

B12JJPF - NKK Switches - 3D model - Other - B12JJPF-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for B12JJPF
Part Number B12JJPF
Manufacturer NKK Switches
Pin Count 6
Part Category Switch
Package Category Other
Footprint Name Other - B12JJPF-2
Released Date Jun 28, 2024
Last Modified Date Jul 5, 2024 2:53 AM UTC
Pinout / Pin List Click Here (Member Only)

B12JJPF Details

Manufacturer Part Number:
B12JJPF
Brand Name:
NKK Switches
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
NKK Switches
JESD-609 Code:
e4
Switch Type:
TOGGLE SWITCH
Terminal Finish:
GOLD

Trust Checks

Community Provided

System Verified

Community Approved

B12JJPF Overview

Use the download button to access the B12JJPF schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like B12JJ, or try a keyword search, such as Toggle Switches
